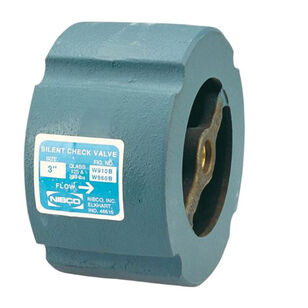

NIBCO® W910B-LF Series NLN10XF Check Valve, 3 in, Wafer, Lead-Free, Iron
NIBCO® W910B-LF Series NLN10XF Check Valve, 3 in, Wafer, Lead-Free, Iron
NIBCO® Check Valve, W910B-LF Series, 3 in Nominal, Wafer Connection, 200 psi, Pressure Class: 125 lb, 200 deg F, 3.13 in Inlet to Outlet Length, Iron Body, Bronze Seat, Bronze Disc, EPDM Softgoods, Lead-Free, 5-3/4 in Dia, Domestic/Import: Domestic, Additional Information: Non-Manual Operation
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,423.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Additional InformationNon-Manual Operation
Body MaterialIron
Connection TypeWafer
Dimensions5-3/4 " Dia
Disc MaterialBronze
Domestic/ImportDomestic
IndustryPlumbing
Inlet to Outlet Length3.13
Lead-FreeYes
Nominal Size3
Pressure Class125
Pressure Rating200
Seat MaterialBronze
SeriesW910B-LF Series
Softgoods MaterialEPDM
Temperature Rating200
Warranty5 Year Limited
Shipping Dimensions (L x W x H)6.25" x 6.25" x 3.75"
Additional Information
FM Approved|MSS SP 125|NSF/ANSI 61/372
Features & Benefits
- Renewable seat and disc Spring actuated (0.5 psi cracking pressure)
Marketing Information
The NIBCO® cast iron sliding disc check valve is wafer-style to fit between standard flanges. Wafer checks may be installed in horizontal positions (or vertical with flow moving up). Choose NIBCO® check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® valves are backed by the NIBCO® 5 years 125% limited warranty.
NIBCO® W910B-LF Series NLN10XF Check Valve, 3 in, Wafer, Lead-Free, Iron
BrandNIBCO®
MFG #NLN10XF
Keller #703209
