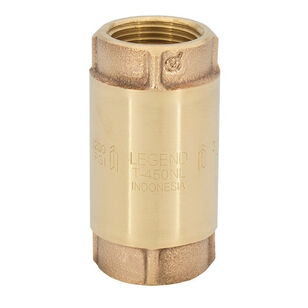

Legend Valve T-450NL Series 105-423NL In-Line Check Valve, 1/2 in, FNPT, Lead-Free, Bronze
Legend Valve T-450NL Series 105-423NL In-Line Check Valve, 1/2 in, FNPT, Lead-Free, Bronze
Legend Valve In-Line Check Valve, T-450NL Series, 1/2 in Nominal, FNPT Connection, 200 psi, 250 deg F, Water Media, 2.4 in Inlet to Outlet Length, Bronze Body, Buna-N/Elastomer Softgoods, Lead-Free, 1.26 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$28.16Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLegend Valve
Body MaterialBronze
Connection TypeFNPT
Dimensions1.26 " W
IndustryPlumbing
Inlet to Outlet Length2.4
Lead-FreeYes
MediaWater
Nominal Size1/2
Pressure Rating200
SeriesT-450NL Series
Softgoods MaterialBuna-N/Elastomer
Temperature Rating250
Shipping Dimensions (L x W x H)14.2" x 6.5" x 5.9"
Additional Information
ANSI/ASME B1.20.1|NSF/ANSI 61, 372
Features & Benefits
- A durable, heavy-wall cast bronze design is ideal for water well applications The 450 is designed for installation onto water well drop pipe, the body's outside diameter is machined smooth to minimize the chance of snagging other components within the well casing The spring-loaded stem disc and elastomer O-ring seal are a silent closure design type The half-pound cracking pressure is ideal for all well pumps types Its fully-guided stem minimizes over-travel, which reduces the chance of piston failure This valve can be installed in vertical or horizontal positions
Documents
Legend Valve T-450NL Series 105-423NL In-Line Check Valve, 1/2 in, FNPT, Lead-Free, Bronze
BrandLegend Valve
MFG #105-423NL
