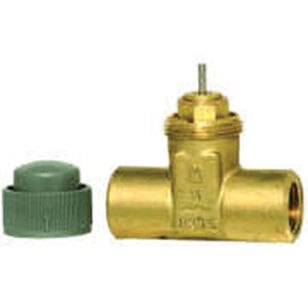

resideo V5862A2070 Cartridge Globe Valve, 3/4 in, FNPT, 235 psi, Brass
resideo V5862A2070 Cartridge Globe Valve, 3/4 in, FNPT, 235 psi, Brass
resideo Cartridge Globe Valve, 3/4 in Nominal, Connection Type: FNPT, Number of Ways/Position: 2-Way, 235 psi, 4.9 Cv Flow Coefficient (Cv), Plastic Handle, Stainless Steel Stem, Brass Trim, Brass Disc, Brass Seat, Brass, Chilled or Hot Water Service, 36 to 230 deg F, 2-15/32 in H x 1 in W x 3-3/4 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$140.53Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Marketing Information
Attributes
Brandresideo
Body MaterialBrass
Bonnet TypeFemale Threaded
Connection TypeFNPT
Dimensions2-15/32 " H x 1 " W x 3-3/4 " D
Disc MaterialBrass
End ConnectionFemale Threaded x Female Threaded
End to End Distance3-1/2 "
Flow Coefficient (Cv)4.9
Handle MaterialPlastic
IndustryHVAC
MaterialBrass
Nominal Size3/4
Number of Ways/Position2-Way
Pressure Rating235
Seat MaterialBrass
Service TypeChilled or Hot Water
SpecificationsNominal Size: 3/4 "
Stem MaterialStainless Steel
Temperature Rating36 to 230
Trim MaterialBrass
TypeGlobe, 2-Way, Stem Down to Close, Equal Percentage Flow
Features & Benefits
- Long stroke allows wider range of control Soft valve seat provides low leakage rate Inserts for 1/2 in. and 3/4 in. valves are changeable without draining valve when used with an insert replacement tool Brass body and Stainless Steel stem Threaded plastic cover/manual handle allows manual operation Easily installed in areas where space is limited
Marketing Information
Cartridge Globe Valves control hot and chilled water for VAV terminals fan coil units, small re-heaters and re-coolers in temperature controllers. Use with M6410 and M7410 Actuator. 1/2 & 3/4 size fit with the M6435 M7435, and the MP958 Actuators.
resideo V5862A2070 Cartridge Globe Valve, 3/4 in, FNPT, 235 psi, Brass
Brandresideo
MFG #V5862A2070
Keller #704108
