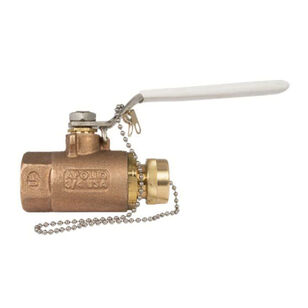

Apollo® 70LF-100 Series 70LF-104-HC Ball Valve With Hose Thread Cap and Chain, 3/4 in, FNPT x Hose Thread, Bronze
Apollo® 70LF-100 Series 70LF-104-HC Ball Valve With Hose Thread Cap and Chain, 3/4 in, FNPT x Hose Thread, Bronze
Apollo® Ball Valve With Hose Thread Cap and Chain, 70LF-100 Series, 3/4 in Nominal, FNPT x Hose Thread Connection, Regular Port, 2-Piece, 600 psi, Water Media, 0.68 in Orifice, 3.66 in Inlet to Outlet Length, 2.32 in Top to Inlet Center, Lever Handle Operator, Material Standard: ANSI/ASME B1.20.7, ASTM B16, Bronze Body, RPTFE Seat, Brass Stem, Brass/RPTFE Trim, MPTFE Packing, Stainless Steel/Vinyl Handle, Brass Ball, MPTFE/RPTFE Softgoods, Lead-Free, Yellow, 210 deg F, 3.66 in L, Domestic/Import: Domestic, Additional Information: 29 inHg Vacuum
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$131.74 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Additional Information29 inHg Vacuum
ApplicationFor potable water, heating, cooling, steam and vacuum applications
Ball MaterialBrass
Body MaterialBronze
ColorYellow
Configuration2-Piece
Connection TypeFNPT x Hose Thread
Dimensions3.66 " L
Domestic/ImportDomestic
Handle MaterialStainless Steel/Vinyl
IndustryPlumbing
Inlet to Outlet Length3.66
Lead-FreeYes
Material StandardANSI/ASME B1.20.7, ASTM B16
MediaWater
Nominal Size3/4
Operator TypeLever Handle
Orifice Size0.68
Packing MaterialMPTFE
Port TypeRegular
Pressure Rating600
Seat MaterialRPTFE
Series70LF-100 Series
Softgoods MaterialMPTFE/RPTFE
Stem MaterialBrass
Temperature Rating210
Top to Inlet Center2.32
Trim MaterialBrass/RPTFE
Warranty5 Year
Shipping Dimensions (L x W x H)7" x 1.5" x 3"
Additional Information
MSS-SP-110|NSF/ANSI 61, 372
Features & Benefits
- Full pressure rated heavy brass hose cap Blowout-proof stem design Adjustable packing gland Premium RPTFE seats and stem packing Stainless steel lever and stem nut, ball chain 100% factory tested Made in USA
Documents
Marketing Information
The Apollo® 70LF Series two-piece regular port ball valve has the same rugged features as the industry standard 70 Series valves with the added advantage of DZR lead-free materials. The 70LF is ideal for plumbing and heating systems, including potable water. Trusted Apollo® performance with a wide range of popular options.
Apollo® 70LF-100 Series 70LF-104-HC Ball Valve With Hose Thread Cap and Chain, 3/4 in, FNPT x Hose Thread, Bronze
BrandApollo®
MFG #70LF104HC
Keller #704763
