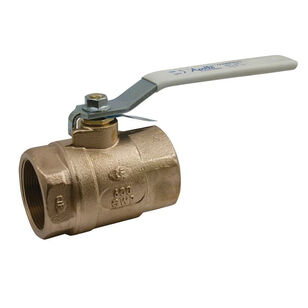

Apollo® 70LF Series 70LF-104-01 Ball Valve, 3/4 in, FNPT, Bronze, 150 psi WSP, 600 psi CWP
Apollo® 70LF Series 70LF-104-01 Ball Valve, 3/4 in, FNPT, Bronze, 150 psi WSP, 600 psi CWP
Apollo® Ball Valve, 70LF Series, 3/4 in Nominal, FNPT Connection, Regular Port, Standard, 150 psi WSP, 600 psi CWP, Water Media, 0.68 in Orifice, 3 in Inlet to Outlet Length, 2.12 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM B16, Bronze Body, RPTFE Seat, Brass Stem, Brass/RPTFE Trim, MPTFE Packing, Steel/Vinyl Handle, Brass Ball, MPTFE/RPTFE Softgoods, Lead-Free, Yellow, 350 deg F, 3 in L, Domestic/Import: Domestic, Additional Information: 29 inHg Vacuum
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$91.52 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Additional Information29 inHg Vacuum
ApplicationFor potable water, heating, cooling, steam and vacuum applications
Ball MaterialBrass
Body MaterialBronze
ColorYellow
ConfigurationStandard
Connection TypeFNPT
Dimensions3 " L
Domestic/ImportDomestic
Handle MaterialSteel/Vinyl
IndustryPlumbing
Inlet to Outlet Length3
Lead-FreeYes
Material StandardASTM B16
MediaWater
Nominal Size3/4
Operator TypeLever Handle
Orifice Size0.68
Packing MaterialMPTFE
Port TypeRegular
Pressure Rating150 psi WSP, 600 psi CWP
Seat MaterialRPTFE
Series70LF Series
Softgoods MaterialMPTFE/RPTFE
Stem MaterialBrass
Temperature Rating350
Top to Inlet Center2.12
Trim MaterialBrass/RPTFE
Warranty5 Year
Shipping Dimensions (L x W x H)6.25" x 1.5" x 2.75"
Additional Information
CRN OC10908.5C|MSS-SP-110|NSF/ANSI 61, 372
Features & Benefits
- EZ-Solder™ lead-free brass and bronze materials Distinctive white lead-free handle grip and blue lead-free hang tag RPTFE seats and stuffing box ring Chromium-plated ball Designed, manufactured and 100% factory tested in the USA
Documents
Marketing Information
The Apollo® 70LF Series two-piece regular port ball valve has the same rugged features as the industry standard 70 Series valves with the added advantage of DZR lead-free materials. The 70LF is ideal for plumbing and heating systems, including potable water. Trusted Apollo® performance with a wide range of popular options.
