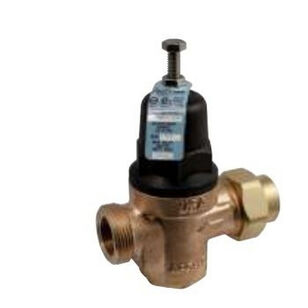

Apollo® 36CLF Series 36CLF10301 Pressure Reducing Valve, 1/2 in Nominal, Union FNPT x FNPT, 25 to 75 psig, Bronze Body
Apollo® 36CLF Series 36CLF10301 Pressure Reducing Valve, 1/2 in Nominal, Union FNPT x FNPT, 25 to 75 psig, Bronze Body
Apollo® Pressure Reducing Valve, 36CLF Series, 1/2 in Nominal, Union FNPT x FNPT Connection, 25 to 75 psig, Portable Water Media, 4-1/2 in Inlet to Outlet Length, Material Standard: ASTM B16, ASTM A228, ASTM UNS 89836, Bronze Body, EPDM Disc, Stainless Steel Trim, EPDM Packing, EPDM/Noryl/Stainless Steel Softgoods, Lead-Free, Yellow, 33 to 180 deg F, 6 in H x 2-3/4 in W, Domestic/Import: Domestic, Additional Information: 50 psi Factory Setting Pressure Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$428.38 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Additional Information50 psi Factory Setting Pressure Rating
ApplicationIndustrial Application
Body MaterialBronze
ColorYellow
Connection TypeUnion FNPT x FNPT
Dimensions6 " H x 2-3/4 " W
Disc MaterialEPDM
Domestic/ImportDomestic
Inlet to Outlet Length4-1/2
Material StandardASTM B16, ASTM A228, ASTM UNS 89836
MediaPortable Water
Nominal Size1/2
Packing MaterialEPDM
Pressure Rating25 to 75
Series36CLF Series
Softgoods MaterialEPDM/Noryl/Stainless Steel
Temperature Rating33 to 180
Trim MaterialStainless Steel
Warranty5 Year
Shipping Dimensions (L x W x H)4.5" x 2.25" x 6.25"
Additional Information
ANSI 372|ASSE 1003|BAA Compliant|BABA Compliant|CSA B356|NSF 372|UPC Certified
Features & Benefits
- Built-in thermal expansion by-pass Balanced piston design Sealed spring cage for vault installations
Documents
Marketing Information
The Apollo® lead-free pressure reducing valve Model PRC (36CLF Series) is designed to protect residential and commercial water distribution systems by automatically controlling excessive pressure changes. The valves integral thermoplastic cage provides maximum corrosion-resistance. Designed for easy in-line servicing with bottom cleanout access to seat disc and strainer. The valve is built for long reliable service with proven ASTM grade lead-free materials.
Apollo® 36CLF Series 36CLF10301 Pressure Reducing Valve, 1/2 in Nominal, Union FNPT x FNPT, 25 to 75 psig, Bronze Body
BrandApollo®
MFG #36CLF10301
