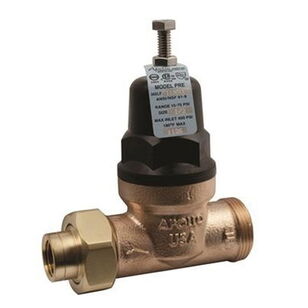

Apollo® 36ELF Series 36ELF11401T Pressure Reducing Valve, 3/4 in Nominal, FNPT x FNPT, 15 to 75 psi, 75 to 150 psi
Apollo® 36ELF Series 36ELF11401T Pressure Reducing Valve, 3/4 in Nominal, FNPT x FNPT, 15 to 75 psi, 75 to 150 psi
Apollo® Pressure Reducing Valve, 36ELF Series, 3/4 in Nominal, FNPT x FNPT Connection, 15 to 75 psi, 75 to 150 psi, Water Media, 5.49 in Inlet to Outlet Length, Material Standard: ASTM B16, A228, 89836, C27451, Bronze Body, EPDM Seat, EPDM Disc, EPDM Softgoods, Lead-Free, Yellow, 33 to 180 deg F, 6 in H x 2-3/4 in D, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$414.66 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Body MaterialBronze
ColorYellow
Connection TypeFNPT x FNPT
Dimensions6 " H x 2-3/4 " D
Disc MaterialEPDM
Domestic/ImportDomestic
IndustryPlumbing
Inlet to Outlet Length5.49
Lead-FreeYes
Material StandardASTM B16, A228, 89836, C27451
MediaWater
Nominal Size3/4
Pressure Rating15 to 75 psi, 75 to 150 psi
Seat MaterialEPDM
Series36ELF Series
Softgoods MaterialEPDM
Temperature Rating33 to 180
Warranty5 Year
Additional Information
ASSE 1003|IAPMO Approved|CSA B356|cCSAus Certified|UPC Certified
Features & Benefits
- Balanced piston design Stainless steel adjusting screw and nut Sealed cage for vault installation Built-in thermal expansion bypass Large area integral stainless steel strainer Modular seat disc and strainer cartridge High flow/high efficiency design 100% made in USA
Documents
Marketing Information
The Apollo® 36ELF Series lead-free pressure reducing valve is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification-resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion-resistance. Designed for easy inline servicing with simple cartridge removal.
Apollo® 36ELF Series 36ELF11401T Pressure Reducing Valve, 3/4 in Nominal, FNPT x FNPT, 15 to 75 psi, 75 to 150 psi
BrandApollo®
MFG #36ELF11401T
Keller #705228
