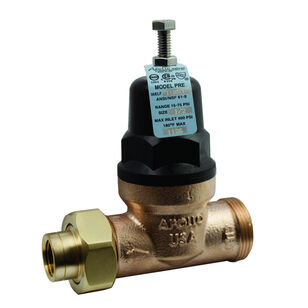

Apollo® 36ELF Series 36ELF12301T Direct Acting Water Pressure Reducing Valve, 1/2 in Nominal, Union FNPT, Bronze Body
Apollo® 36ELF Series 36ELF12301T Direct Acting Water Pressure Reducing Valve, 1/2 in Nominal, Union FNPT, Bronze Body
Apollo® Direct Acting Water Pressure Reducing Valve, 36ELF Series, 1/2 in Nominal, Union FNPT Connection, 15 psig, 75 psig, Portable Water Media, 5.53 in Inlet to Outlet Length, Material Standard: ASTM B584, ASTM B16, ASTM 228, Bronze Body, EPDM Disc, Spring Steel Trim, EPDM Packing, Brass/EPDM/Noryl Softgoods, Lead-Free, Yellow, 33 to 180 deg F, 6 in H x 2-3/4 in W, Domestic/Import: Domestic, Additional Information: 60 psi Factory Setting Pressure Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$471.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Additional Information60 psi Factory Setting Pressure Rating
ApplicationIndustrial Application
Body MaterialBronze
ColorYellow
Connection TypeUnion FNPT
Dimensions6 " H x 2-3/4 " W
Disc MaterialEPDM
Domestic/ImportDomestic
IndustryPlumbing
Inlet to Outlet Length5.53
Material StandardASTM B584, ASTM B16, ASTM 228
MediaPortable Water
Nominal Size2-Jan
Packing MaterialEPDM
Pressure Rating15 psig, 75 psig
Series36ELF Series
Softgoods MaterialBrass/EPDM/Noryl
Temperature Rating33 to 180
Trim MaterialSpring Steel
Warranty5 Year
Shipping Dimensions (L x W x H)5.5" x 2.25" x 5.75"
Additional Information
ARRA Compliant|ASSE 1003|CSA B356|IAPMO Listed|UPC Certified
Features & Benefits
- Balanced piston design Sealed cage for vault installations Built-in thermal expansion by-pass Large area integral stainless steel strainer Modular seat disc and strainer cartridge
Documents
Marketing Information
The Apollo® 36ELF Series lead-free pressure reducing valve is designed to conserve water and protect water distribution systems by automatically reducing elevated supply pressures. The dezincification-resistant bronze body, stainless steel adjusting screw and dielectric polymer cage provide maximum corrosion-resistance. Designed for easy in-line servicing with simple cartridge removal.
