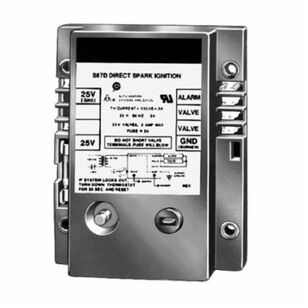

Honeywell Home S87D Series S87D1004 Direct Spark Ignition Control, 25 V, 1/4 in, Male Quick-Connect
Honeywell Home S87D Series S87D1004 Direct Spark Ignition Control, 25 V, 1/4 in, Male Quick-Connect
Honeywell Home Direct Spark Ignition Control, S87D Series, 25 V, 2 A, 1/4 in Connection, Male Quick-Connect Connection, Liquid Propane, Natural Gas, 6 s Lockout, 4.06 in Width, 5-1/4 in Height, For Use With: Gas Fired Furnaces, Boilers and Heating Appliances, Additional Information: 2-Rod, 60 Hz Frequency Rating, - 40 to 175 deg F Temperature Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$821.31Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Additional Information2-Rod, 60 Hz Frequency Rating, - 40 to 175 deg F Temperature Rating
Amperage Rating2
Connection Size1/4
Connection TypeMale Quick-Connect
Gas TypeLiquid Propane, Natural Gas
Height5-1/4
IndustryHVAC
Lockout Time6
SeriesS87D Series
Suitable For Use WithGas Fired Furnaces, Boilers and Heating Appliances
Voltage Rating25
Width4.06
Shipping Dimensions (L x W x H)162" x 116" x 90"
Additional Information
American Gas Association No. 20-148|Canadian Gas Association No. 1029-ABl-5037A|UL MH11790
Features & Benefits
- S87D uses separate electrodes for spark ignition and flame sensing Use with any gas control designed for OSI application that is rated at 2 A or less For direct replacement of S825D External, replaceable fuse protects system transformer and temperature controller Automatic system lockout after trial for ignition if malfunction exists or main burner flame fails to ignite All models available with 4, 6, 11 or 21 sec (nominal) lockout time Compact, solid state components for accurate, long-lasting performance Convenient remote start procedure, after safety shutdown, control module can be reset from the temperature controller Low voltage control circuit reduces wiring costs Uses flame rectification principle to prove presence of main burner flame, false flame signal resulting from short to ground results in safety shut down
Marketing Information
The S87D is a low voltage, solid state, direct spark ignition control module for gas fired furnaces, boilers and heating appliances. Models are available with or without a prepurge timer. The S87 controls the gas valve, monitors the main burner flame and generates a high voltage for spark ignition.
Honeywell Home S87D Series S87D1004 Direct Spark Ignition Control, 25 V, 1/4 in, Male Quick-Connect
BrandHoneywell
MFG #S87D1004/U
Keller #705563
