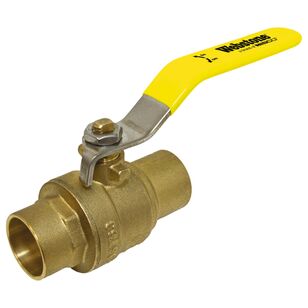

WEBSTONE 51706 1-1/2 CXC BALL VLV
WEBSTONE 51706 1-1/2 CXC BALL VLV
Webstone Clean Brass™, 51706, Ball Valve, Standard, Series: 5170, 1-1/2 in Nominal, C End Style, 600 psi CWP/150 psi WSP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 1-1/2 in Orifice, Lever Handle Actuator, 4-3/8 in Inlet to Outlet Length, 3-1/8 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$84.63Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Marketing Information
Attributes
BrandWebstone
Actuator TypeLever Handle
Ball MaterialHCP Brass
Body MaterialForged Brass
ColorBrass
Domestic/ImportImport
End StyleC
Inlet to Outlet Length4-3/8"
MediaGlycol Mixture/Oil/Water
Nominal Size1-1/2"
Orifice Size1-1/2"
Port TypeFull
Pressure Rating600 psi CWP/150 psi WSP
Series5170
Softgoods MaterialPTFE
Temperature Rating100
Top to Inlet Center3-1/8"
Trim MaterialBrass/PTFE
TypeStandard
Additional Information
ASME B16.18|NSF/ANSI 8/14/61/372|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Features & Benefits
- Ball valve with integral spring check saves labor, space, and leak paths Control flow with quarter-turn lever handle PTFE seat/stem seal Models available to satisfy all state and federal low-lead laws This approved Webstone valve is actuated by a blow-out proof stem
Marketing Information
Designed for residential, commercial or industrial use with water, oil or gas. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Solder joint temperature ratings are per ASME B16.18 Annex A for 95-5 solder. Other solder materials have lower pressure/temperature limits. Do not silver braze or overheat valves when soldering.
WEBSTONE 51706 1-1/2 CXC BALL VLV
BrandWebstone
MFG #H-51706
Keller #705588
