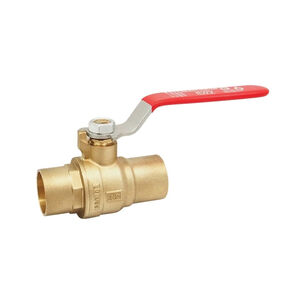

RWV® ECO-VALVE 5595AB Series 5595AB-1/2 Ball Valve, 1/2 in, Solder, Brass, 150 psi WSP, 600 psi WOG
RWV® ECO-VALVE 5595AB Series 5595AB-1/2 Ball Valve, 1/2 in, Solder, Brass, 150 psi WSP, 600 psi WOG
RWV® ECO-VALVE Ball Valve, 5595AB Series, 1/2 in Nominal, Solder Connection, Full Port, 2-Piece, 150 psi WSP, 600 psi WOG, Gas, Oil, Water Media, 1/2 in Orifice, 2.2 in Inlet to Outlet Length, 1.93 in Top to Inlet Center, 0.627 to 0.631 in Opening, Handle Operator, 11 Cv Flow Coefficient (Cv), Material Standard: ASME B16.22, ASTM B124 C37700, ASTM A36, Brass Body, PTFE Seat, Brass Stem, PTFE Trim, PTFE Packing, Steel Handle, Brass Ball, FKM/PTFE Softgoods, Lead-Free, 15 to 160 deg F, 2.2 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$24.85 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRWV®
ApplicationFor HVAC systems, oil, compressed air or gas distribution
Ball MaterialBrass
Body MaterialBrass
Configuration2-Piece
Connection TypeSolder
Dimensions2.2 " L
Domestic/ImportDomestic
Flow Coefficient (Cv)11
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length2.2
Lead-FreeYes
Material StandardASME B16.22, ASTM B124 C37700, ASTM A36
MediaGas, Oil, Water
Nominal Size1/2
Opening Size0.627 to 0.631
Operator TypeHandle
Orifice Size1/2
Packing MaterialPTFE
Port TypeFull
Pressure Rating150 psi WSP, 600 psi WOG
Seat MaterialPTFE
Series5595AB Series
Softgoods MaterialFKM/PTFE
Stem MaterialBrass
Temperature Rating15 to 160
Top to Inlet Center1.93
Trim MaterialPTFE
Additional Information
California AB1953|cTLus Listed|NSF/ANSI 61, 372
Features & Benefits
- Chrome-plated ball Virgin PTFE seats Adjustable packing nut Blowout-proof stem
Marketing Information
Lead-free ball valves have spherical discs that control liquid or gas flow through a port by rotating to open or close the fluid passageway. Our lead-free ball valves offer tight shut-off, with a maximum operating temperature of 160 deg F and a maximum operating pressure of 600 psi. Different sizes are available to accommodate various flow rates.
RWV® ECO-VALVE 5595AB Series 5595AB-1/2 Ball Valve, 1/2 in, Solder, Brass, 150 psi WSP, 600 psi WOG
BrandRWV®
MFG #5595AB 1/2
Keller #705653
My Part ##
Last Ordered#
$24.85 / ea
