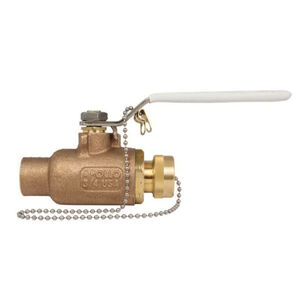

Apollo® 70LF-200 Series 70LF-203-HC Ball Valve With Hose Thread Cap and Chain, 1/2 x 3/4 in, Solder x Hose Thread
Apollo® 70LF-200 Series 70LF-203-HC Ball Valve With Hose Thread Cap and Chain, 1/2 x 3/4 in, Solder x Hose Thread
Apollo® Ball Valve With Hose Thread Cap and Chain, 70LF-200 Series, 1/2 x 3/4 in Nominal, Solder x Hose Thread Connection, Regular Port, 2-Piece, 600 psi, Water Media, 1/2 in Orifice, 3.32 in Inlet to Outlet Length, 1.94 in Top to Inlet Center, Lever Handle Operator, Material Standard: ANSI/ASME B1.20.7, ASTM B16, Bronze Body, RPTFE Seat, Brass Stem, Brass/RPTFE Trim, MPTFE Packing, Stainless Steel/Vinyl Handle, Brass Ball, MPTFE/RPTFE Softgoods, Lead-Free, Yellow, 210 deg F, 3.32 in L, Domestic/Import: Domestic, Additional Information: 29 inHg Vacuum
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$93.25 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Additional Information29 inHg Vacuum
ApplicationFor potable water, heating, cooling, steam and vacuum applications
Ball MaterialBrass
Body MaterialBronze
ColorYellow
Configuration2-Piece
Connection TypeSolder x Hose Thread
Dimensions3.32 " L
Domestic/ImportDomestic
Handle MaterialStainless Steel/Vinyl
Inlet to Outlet Length3.32
Material StandardANSI/ASME B1.20.7, ASTM B16
MediaWater
Nominal Size1/2 x 3/4
Operator TypeLever Handle
Orifice Size1/2
Packing MaterialMPTFE
Port TypeRegular
Pressure Rating600
Seat MaterialRPTFE
Series70LF-200 Series
Softgoods MaterialMPTFE/RPTFE
Stem MaterialBrass
Temperature Rating210
Top to Inlet Center1.94
Trim MaterialBrass/RPTFE
Warranty5 Year
Shipping Dimensions (L x W x H)5.75" x 1.25" x 2.5"
Additional Information
MSS-SP-110|NSF/ANSI 61, 372
Features & Benefits
- Full pressure rated heavy brass hose cap Blowout-proof stem design Adjustable packing gland Premium RPTFE seats and stem packing Stainless steel lever and stem nut, ball chain 100% factory tested Made in USA
Documents
Marketing Information
The Apollo® 70LF Series two-piece regular port ball valve has the same rugged features as the industry standard 70 Series valves with the added advantage of DZR lead-free materials. The 70LF is ideal for plumbing and heating systems, including potable water. Trusted Apollo® performance with a wide range of popular options.
Apollo® 70LF-200 Series 70LF-203-HC Ball Valve With Hose Thread Cap and Chain, 1/2 x 3/4 in, Solder x Hose Thread
BrandApollo®
MFG #70LF203HC
Keller #706086
