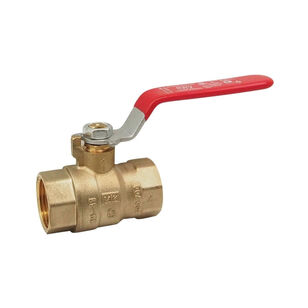

RWV® ECO-VALVE 5592AB Series 5592AB-1-1/2 Ball Valve, 1-1/2 in, FNPT, Brass, 150 psi WSP, 600 psi WOG
RWV® ECO-VALVE 5592AB Series 5592AB-1-1/2 Ball Valve, 1-1/2 in, FNPT, Brass, 150 psi WSP, 600 psi WOG
RWV® ECO-VALVE Ball Valve, 5592AB Series, 1-1/2 in Nominal, FNPT Connection, Full Port, 2-Piece, 150 psi WSP, 600 psi WOG, Gas, Oil, Steam, Water Media, 1.46 in Orifice, 3.54 in Inlet to Outlet Length, 2.87 in Top to Inlet Center, Handle Operator, 111 Cv Flow Coefficient (Cv), Material Standard: ASTM B927 C27450, ASTM B124 C37700, ASTM A36, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, Brass/PTFE Packing, Steel Handle, Brass Ball, FKM/PTFE Softgoods, Lead-Free, 15 to 160 deg F, 3.54 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$122.60 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRWV®
ApplicationFor HVAC systems, oil, compressed air or gas distribution
Ball MaterialBrass
Body MaterialBrass
Configuration2-Piece
Connection TypeFNPT
Dimensions3.54 " L
Flow Coefficient (Cv)111
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length3.54
Material StandardASTM B927 C27450, ASTM B124 C37700, ASTM A36
MediaGas, Oil, Steam, Water
Nominal Size1/1/2002
Operator TypeHandle
Orifice Size1.46
Packing MaterialBrass/PTFE
Port TypeFull
Pressure Rating150 psi WSP, 600 psi WOG
Seat MaterialPTFE
Series5592AB Series
Softgoods MaterialFKM/PTFE
Stem MaterialBrass
Temperature Rating15 to 160
Top to Inlet Center2.87
Trim MaterialBrass/PTFE
Additional Information
California AB1953|ASME B1.20.1|cCSAus Certified|cTLus Listed|MSS-SP-110|NSF/ANSI 61, 372|UL Listed
Features & Benefits
- Chrome-plated ball Virgin PTFE seats Adjustable packing nut Blowout-proof stem
Marketing Information
Lead-free ball valves have spherical discs that control liquid or gas flow through a port by rotating to open or close the fluid passageway. Our lead-free ball valves offer tight shut-off, with a maximum operating temperature of 160 deg F and a maximum operating pressure of 600 psi. Different sizes are available to accommodate various flow rates.
RWV® ECO-VALVE 5592AB Series 5592AB-1-1/2 Ball Valve, 1-1/2 in, FNPT, Brass, 150 psi WSP, 600 psi WOG
BrandRWV®
MFG #5592AB 1-1/2
Keller #706152
