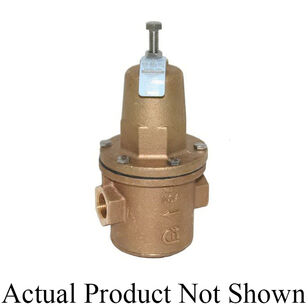

Apollo® 36HLF Series 36HLF20001 Straight High Capacity Pressure Reducing Valve, 3 in Nominal, FNPT, 25 to 75 psi
Apollo® 36HLF Series 36HLF20001 Straight High Capacity Pressure Reducing Valve, 3 in Nominal, FNPT, 25 to 75 psi
Apollo® Straight High Capacity Pressure Reducing Valve, 36HLF Series, 3 in Nominal, FNPT Connection, 25 to 75 psi, Water Media, 10.37 in Inlet to Outlet Length, Material Standard: ASTM B584, C89836, Bronze Body, EPDM Seat, EPDM Disc, Nitrile Softgoods, Lead-Free, Yellow, 33 to 180 deg F, 19.12 in H x 9.75 in D, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,831.09 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
ApplicationFor potable water, building installations and industry applications
Body MaterialBronze
ColorYellow
Connection TypeFNPT
Dimensions19.12 " H x 9.75 " D
Disc MaterialEPDM
Domestic/ImportDomestic
IndustryPlumbing
Inlet to Outlet Length10.37
Lead-FreeYes
Material StandardASTM B584, C89836
MediaWater
Nominal Size3
Pressure Rating25 to 75
Seat MaterialEPDM
Series36HLF Series
Softgoods MaterialNitrile
Temperature Rating33 to 180
Additional Information
ASSE 1003|IAPMO Approved|CSA B356|cCSAus Certified|UPC Certified
Features & Benefits
- Dezincification-resistant lead-free bronze Sealed spring cage for vault installations Ultra high-flow capacity Internal thermal expansion bypass Stainless steel bolts and spring 100% made in USA
Documents
Marketing Information
The Apollo® valves 36HLF Series lead-free pressure reducing valve is designed for commercial, industrial and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. The valve is made with proven ASTM-grade lead-free bronze and stainless steel materials. The PRH-LF provides high-capacity flow with low pressure drop. It is designed with an integral bypass relief to protect against thermal expansion downstream. The bottom access enables easy inline cleaning or seat replacement.
