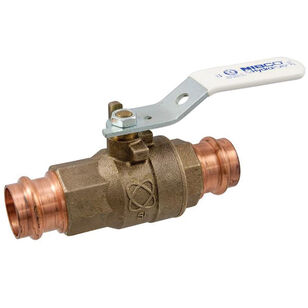

NIBCO PC58580LF 2 PRS BALL VLV PXP
NIBCO PC58580LF 2 PRS BALL VLV PXP
NIBCO® Ball Valve, PC585-80-LF Series, 2 in Nominal, Female Press Connection, Full Port, 250 psi, Water Media, Manual Actuator, 2 in Orifice, 8.4 in Inlet to Outlet Length, 3.56 in Top to Inlet Center, Quarter-Turn Lever Handle Operator, Material Standard: ASTM B16 C36000, C12200, C36000, C87600, Silicon Bronze Alloy Body, RPTFE Seat, Silicon Bronze Alloy Stem, EPDM Seal, PTFE Packing, Steel Handle, Brass Ball, EPDM/PTFE Softgoods, Lead-Free, 250 deg F, 3.54 in Dia x 10.96 in L x 5.33 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$982.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Actuator TypeManual
ApplicationUsed to deliver water for human consumption including residential and commercial construction
Ball MaterialBrass
Body MaterialSilicon Bronze Alloy
Connection TypeFemale Press
Dimensions3.54 " Dia x 10.96 " L x 5.33 " H
Domestic/ImportDomestic
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length8.4
Lead-FreeYes
Material StandardASTM B16 C36000, C12200, C36000, C87600
MediaWater
Nominal Size2
Operator TypeQuarter-Turn Lever Handle
Orifice Size2
Packing MaterialPTFE
Port TypeFull
Pressure Rating250
Seal MaterialEPDM
Seat MaterialRPTFE
SeriesPC585-80-LF Series
Softgoods MaterialEPDM/PTFE
Stem MaterialSilicon Bronze Alloy
Temperature Rating250
Top to Inlet Center3.56
Warranty5 Year Limited
Additional Information
MSS SP-110 Specified|NSF/ANSI-61-8 372 Certified|IAPMO/ANSI Z1157 Certified
Features & Benefits
- Blowout-proof stem design Press leak detection feature Dezincification-resistant
Marketing Information
The NIBCO® press System® is user friendly, quick and easy to install. When properly crimped a unique "N" witness mark is clearly visible. The lead-free HydraPure® performance bronze™ ball valve is specifically designed for use in systems that deliver water for human consumption. NIBCO® press System® applies the proven performance of press technology to NIBCO® valves and fittings the most specified flow control products in the industry. The NIBCO® press System® features a full range of precision engineered copper fittings, bronze valves, accessories, pressing tools, jaws and chains. NIBCO® press System® valves are backed by a 5 year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO® is the preferred brand in the industry.
NIBCO PC58580LF 2 PRS BALL VLV PXP
BrandNIBCO®
MFG #NF840XD
Keller #706370
My Part ##
Last Ordered#
$982.00 / ea
