NIBCO T-FP-600A-LF-LL-3/4 THRD FPBV
NIBCO T-FP-600A-LF-LL-3/4 THRD FPBV

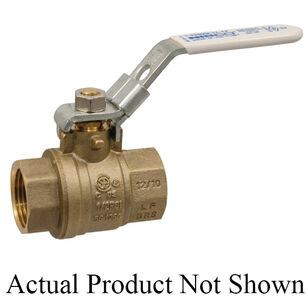

NIBCO® Ball Valve, T-FP600A-LF-LL Series, 3/4 in Nominal, FNPT Connection, Full Port, 2-Piece, 600 psi, 3/4 in Orifice, 2.36 in Inlet to Outlet Length, 2.11 in Top to Inlet Center, Quarter-Turn Locking Lever Handle Operator, Material Standard: ASTM C46500, DZR Copper Alloy Body, PTFE Seat, Brass Stem, PTFE Packing, Steel Handle, Brass Ball, Lead-Free, 200 deg F, 2.86 in H x 1.49 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$72.47 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialBrass
Body MaterialDZR Copper Alloy
Configuration2-Piece
Connection TypeFNPT
Dimensions2.86 " H x 1.49 " W
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length2.36
Lead-FreeYes
Material StandardASTM C46500
Nominal Size3/4
Operator TypeQuarter-Turn Locking Lever Handle
Orifice Size3/4
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seat MaterialPTFE
SeriesT-FP600A-LF-LL Series
Stem MaterialBrass
Temperature Rating200
Top to Inlet Center2.11
Warranty2 Year Limited
Additional Information
CSA 9.1|CSA/ANSI Z21.15|CSA/ASME B16.33|CSA/ASME B16.44|CSA/CAN/CGA 3.16|CSA/CGA CR91-002|FM 1140|IAPMO Listed|IAPMO/ANSI Z1157|MSS SP-110/145|NSF/ANSI 61-8/372|UL 125|UL 1477|UL 258|UL 842|UPC IGC-157
Features & Benefits
- Valve pressure rating 600 psi non-shock cold working pressure Blow-out-proof stem
Documents
Marketing Information
The NIBCO® lead-free copper alloy ball valve with threaded end connections provides bubble tight shutoff. The valve's PTFE seats and lead-free ball exhibit high corrosion resistance properties. The valve is ideal for hot/cold water and gas applications.
NIBCO T-FP-600A-LF-LL-3/4 THRD FPBV
BrandNIBCO®
MFG #NL998XL8
Keller #707668
My Part ##
Last Ordered#
$72.47 / ea
