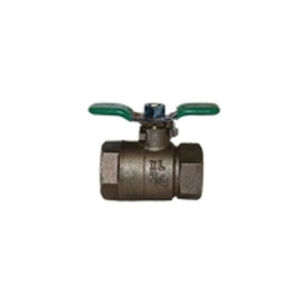

Zurn® 850XL Series 1-850TXL Ball Valve, 1 in, FNPT, Bronze, 400 psi
Zurn® 850XL Series 1-850TXL Ball Valve, 1 in, FNPT, Bronze, 400 psi
Zurn® Ball Valve, 850XL Series, 1 in Nominal, FNPT Connection, Full Port, 400 psi, Gas, Oil, Water Media, 2-3/4 in Inlet to Outlet Length, 2 in Top to Inlet Center, Handle Operator, Material Standard: ASTM B584, ASTM B16, Bronze Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, PTFE Packing, Stainless Steel Handle, Brass Ball, PTFE Softgoods, Lead-Free, 33 to 350 deg F, 2-3/4 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$242.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandZurn®
ApplicationFor residential, commercial and industrial applications
Ball MaterialBrass
Body MaterialBronze
Connection TypeFNPT
Dimensions2-3/4 " L
Domestic/ImportDomestic
Handle MaterialStainless Steel
Inlet to Outlet Length2-3/4
Material StandardASTM B584, ASTM B16
MediaGas, Oil, Water
Nominal Size1
Operator TypeHandle
Packing MaterialPTFE
Port TypeFull
Pressure Rating400
Seat MaterialPTFE
Series850XL Series
Softgoods MaterialPTFE
Stem MaterialBrass
Temperature Rating33 to 350
Top to Inlet Center2
Trim MaterialBrass/PTFE
Shipping Dimensions (L x W x H)2.5" x 1.7" x 3"
Additional Information
IAPMO R and T Approved|NSF/ANSI 372
Features & Benefits
- 1/4-turn, full-port ball valves Used on Wilkins small diameter backflow assemblies
Marketing Information
The 1 in 850TXL full-port bronze ball valve is tapped (FNPT x FNPT) and used on Zurn® Wilkins small diameter backflow assemblies for throttling and balancing installations of low pressure steam, air, water and non-corrosive gas or oil. Ideal for use in residential, commercial and industrial applications where lead-free valves are required, the pressure rating for the 850XL is 400 psi WOG with a temperature rating of 33 to 350 deg F at 50 psi. The 1/4-turn, full-port ball valves feature bronze body construction with chrome-plated brass ball.
Zurn® 850XL Series 1-850TXL Ball Valve, 1 in, FNPT, Bronze, 400 psi
BrandZurn®
MFG #1-850TXL
Keller #707776
My Part ##
Last Ordered#
$242.00 / ea
