LEG 301-203NL 1/2 MXS T-571 LF UN
LEG 301-203NL 1/2 MXS T-571 LF UN

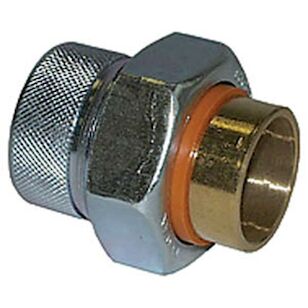

Legend Valve Di-Electric Union, T-571MxSNL Series, Union Fitting, 1/2 in Connection Size 1, Connection Type 1: MNPT, 1/2 in Connection Size 2, Connection Type 2: C, MNPT|C Connection, Steel, Material Construction: Forged Carbon Steel, Finish: Galvanized, 200 psi, 2.75 in L x 1.44 in W, 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$14.12Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLegend Valve
Connection Size 11/2
Connection Size 21/2
Connection TypeMNPT|C
Connection Type 1MNPT
Connection Type 2C
Dimensions2.75 " L x 1.44 " W
FinishGalvanized
Fitting TypeUnion
IndustryPlumbing
MaterialSteel
Material ConstructionForged Carbon Steel
Pressure Rating200
SeriesT-571MxSNL Series
Temperature Rating180
Additional Information
ANSI/ASME B1.20.1/B.16.39/B.16.18|NSF 372|US Federal Public Law 111-380
Features & Benefits
- All fittings are UL listed and FM approved for fire suppression Manufactured using the latest technologies for material consistency and dimensional tolerances Designed to reduce stray current and galvanic corrosion where two dissimilar metals are joined Classified as a class 150 malleable iron fitting, (rated at 150 lb/sq-in) they are also test pressure rated by UL and factory mutual at 300 and 500 lb/sq-in, configuration specific Forged carbon steel, galvanized body, forged carbon steel, galvanized union nut lead-free forged brass solder adapters, EPDM rubber gasket, ABS resin insert insulator
Documents
Marketing Information
Legend offers more than 9000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.
