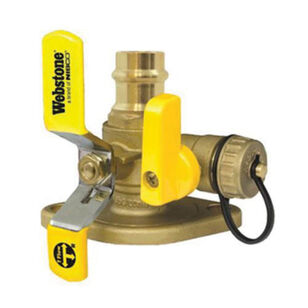

Webstone 8141 Series H-81417HV Uni-Flange Ball Valve With Drain, 2 in Nominal, Flanged, Brass
Webstone 8141 Series H-81417HV Uni-Flange Ball Valve With Drain, 2 in Nominal, Flanged, Brass
Webstone Uni-Flange Ball Valve With Drain, 8141 Series, 2 in Nominal, Flanged Connection, 1-15/16 in Opening, Handle Operator, 250 lbf/sq-in, 250 deg F, Brass, Steel Handle, Brass Packing, PTFE Seal, PTFE Seat, Brass Stem, Brass Trim, 5-13/16 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$330.70Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWebstone
Connection TypeFlanged
Dimensions5-13/16 " L
Handle MaterialSteel
IndustryPlumbing
MaterialBrass
Nominal Size2
Opening Size1-15/16
Operator TypeHandle
Packing MaterialBrass
Pressure Rating250
Seal MaterialPTFE
Seat MaterialPTFE
Series8141 Series
Stem MaterialBrass
Temperature Rating250
Trim MaterialBrass
Additional Information
ISO 9001 Certified
Features & Benefits
- With detachable rotating flange, multi-function drain, adjustable packing gland, nuts and bolts This approved Webstone valve is actuated by a blowout-proof stem and features an adjustable packing gland HV models fit both standard and high velocity pumps Brass end cap, drain stem, drain end cap, flange and cap, PTFE drain seats, chrome-plated brass drain ball, epoxy-coated aluminum drain handle, stainless steel handle nut, retainer, screw, washer, flange bolts and hex nuts, EPDM gasket and PVC strap
Webstone 8141 Series H-81417HV Uni-Flange Ball Valve With Drain, 2 in Nominal, Flanged, Brass
BrandWebstone
MFG #H-81417HV
Keller #708011
