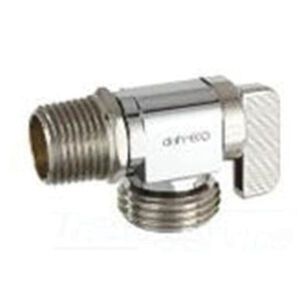

dahl mini-ball™ 611-01-04 Boiler Drain Valve, 1/2 in, Female Solder x MHT, 250 psi, 250 deg F, Brass, Chrome-Plated
dahl mini-ball™ 611-01-04 Boiler Drain Valve, 1/2 in, Female Solder x MHT, 250 psi, 250 deg F, Brass, Chrome-Plated
dahl mini-ball™ Boiler Drain Valve, 1/2 in Nominal, Female Solder x MHT Connection, Angled, 250 psi, Handle Actuator, 2.3 in Inlet to Outlet Length, 1.2 in Top to Inlet Center, Brass Body, PTFE Seal, PTFE Trim, Zinc Handle, EPDM/FKM/PTFE Softgoods, Handle Operator, 1.8 Cv Flow Coefficient (Cv), 250 deg F, Lead-Free, Finish: Chrome-Plated, 2.3 in L x 2.6 in H, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$24.33 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
Branddahl
Actuator TypeHandle
ApplicationFor both plumbing and heating applications
Body MaterialBrass
ConfigurationAngled
Connection TypeFemale Solder x MHT
Dimensions2.3 " L x 2.6 " H
Domestic/ImportImport
FinishChrome-Plated
Flow Coefficient (Cv)1.8
Handle MaterialZinc
IndustryPlumbing
Inlet to Outlet Length2.3
Lead-FreeYes
Nominal Size1/2
Operator TypeHandle
Pressure Rating250
Seal MaterialPTFE
Softgoods MaterialEPDM/FKM/PTFE
Temperature Rating250
Top to Inlet Center1.2
Trim MaterialPTFE
Additional Information
cCSAus Certified|UPC Certified|NSF/ANSI/CAN 372, 61:Q≤0.5
Features & Benefits
- Every valve is tested before leaving our factory
Documents
dahl mini-ball™ 611-01-04 Boiler Drain Valve, 1/2 in, Female Solder x MHT, 250 psi, 250 deg F, Brass, Chrome-Plated
Branddahl
MFG #611-01-04
Keller #709902
My Part ##
Last Ordered#
$24.33 / ea
