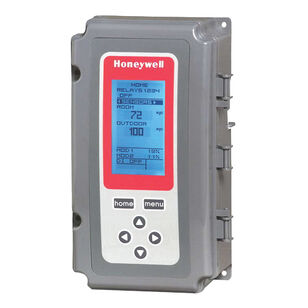

Honeywell T775M2030/U Electronic Remote Temperature Control, 24/120/240 VAC, Temperature Settings: -40 to 248 deg F
Honeywell T775M2030/U Electronic Remote Temperature Control, 24/120/240 VAC, Temperature Settings: -40 to 248 deg F
Honeywell Electronic Remote Temperature Control, 24/120/240 VAC, Configuration: (4) SPDT, Relay and (2) Analog Output, +/-1 deg F at 77 deg F Accuracy, 50/60 Hz, 1 - 150 deg F Differential, Temperature Settings: -40 to 248 deg F, 4-13/32 in L, 8-5/32 in H, 2-15/16 in W, -40 to 125 deg F at 50 Hz, -40 to 140 deg F at 60 Hz Ambient
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,199.78Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Accuracy+/-1 deg F at 77 deg F
Configuration(4) SPDT, Relay and (2) Analog Output
Differential Temperature1 - 150
Frequency Rating50/60
Height8-5/32
Length4-13/32
Temperature Rating-40 to 125 deg F at 50 Hz, -40 to 140 deg F at 60 Hz Ambient
Temperature Settings-40 to 248
Voltage Rating24/120/240
Width2-15/16
Additional Information
cUL/US Listed, CE Certified, C-Tick, IP65
Features & Benefits
- The T775 electronic remote temperature controllers are the next generation of commercial and agricultural controls capable of remote sensing of temperature and providing switched and/or proportional outputs to various types of loads Save time on installations with the easy-to-use graphical interface, large display and the intuitive programming Use the time clock scheduler or digital input to control the setback and disable output options to help save energy Protect equipment from freezing or over heating on models with the modulating high or low limit control option Get pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID) Configure models with reset in a few easy steps Control floating actuators with floating outputs on select models Eliminate the need for a separate time delay device and protect equipment with the minimum off time option Includes 50021579-001 and T775-SENS-WR sensor with non-NEMA 4X models (2) sensor input 1097 ohm PTC at 77 deg F sensor Includes (1) 50021579-001 sensors Up to 1000 ft maximum distance to sensor 1 - 150 deg F throttling range High/low modulating limit
Honeywell T775M2030/U Electronic Remote Temperature Control, 24/120/240 VAC, Temperature Settings: -40 to 248 deg F
BrandHoneywell
MFG #T775M2030/U
Keller #709987
My Part ##
Last Ordered#
$1,199.78Â /Â ea
