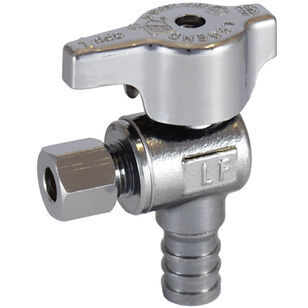

Legend Valve T-595NL Series 114-609NL Angle Stop Valve, 1/2 x 3/8 in Nominal, PEX x Compression, 125 CWP, Brass Body
MFG #114-609NL
Item #712503
Mfr. Part #114-609NL
UPC #662545084848
Legend Valve Angle Stop Valve, T-595NL Series, 1/2 x 3/8 in Nominal, PEX x Compression Connection, 125 CWP, Material Standard: ASTM D1784, Class 23447, ASTM F1807, Brass/EPDM Trim, ABS/CPVC/EPDM/NBR Softgoods, Brass Body, ABS Handle, Quarter-Turn Handle Actuator, Finish: Chrome-Plated, 180 deg F, 2.99 in H, Domestic/Import: Domestic, Additional Information: 2.99 in L Inlet to Outlet, Angled Configuration, Brass Stem, EPDM Seat, Lead-Free, Water Media, Water Service
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$17.18Â /Â ea
In Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandLegend Valve
Actuator TypeQuarter-Turn Handle
Additional Information2.99 " L Inlet to Outlet, Angled Configuration, Brass Stem, EPDM Seat, Lead-Free, Water Media, Water Service
Body MaterialBrass
Connection TypePEX x Compression
Dimensions2.99 " H
Domestic/ImportDomestic
FinishChrome-Plated
Handle MaterialABS
IndustryPlumbing
Material StandardASTM D1784, Class 23447, ASTM F1807
Nominal Size1/2 x 3/8
Pressure Rating125
SeriesT-595NL Series
Softgoods MaterialABS/CPVC/EPDM/NBR
Temperature Rating180
Trim MaterialBrass/EPDM
Shipping Dimensions (L x W x H)12.8" x 12.6" x 8"
Additional Information
ANSI/ASME B1.20.1|NSF/ANSI 61, 372
Features & Benefits
1/4-turn, self-cleaning ball valve design resists mineral and scale build-up, assuring positive shut-off and re-opening
The ball seat operation and dual O-ring stem seal features, out perform traditional multi-turn stop designs
Compact, forged brass, chrome-plated or polished brass bodies are both durable and decorative
An ideal upgrade replacement for worn, leaking stops that won't close completely
