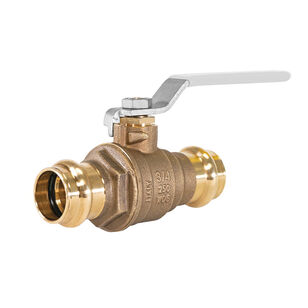

Jomar Valve® JP-100G Series 100-207G Ball Valve, 1-1/2 in, Press, Brass, 250 psi
Jomar Valve® JP-100G Series 100-207G Ball Valve, 1-1/2 in, Press, Brass, 250 psi
Jomar Valve® Ball Valve, JP-100G Series, 1-1/2 in Nominal, Press Connection, Full Port, 2-Piece, 250 psi, Gas, Oil, Water Media, 5.61 in Inlet to Outlet Length, 3.22 in Top to Inlet Center, Handle Operator, 174 Cv Flow Coefficient (Cv), Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, PTFE Packing, Steel Handle, Brass Ball, EPDM/FKM/PTFE Softgoods, Lead-Free, 250 deg F, 5.61 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$215.34 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandJomar Valve®
Ball MaterialBrass
Body MaterialBrass
Configuration2-Piece
Connection TypePress
Dimensions5.61 " L
Domestic/ImportDomestic
Flow Coefficient (Cv)174
Handle MaterialSteel
Inlet to Outlet Length5.61
MediaGas, Oil, Water
Nominal Size1-1/2
Operator TypeHandle
Packing MaterialPTFE
Port TypeFull
Pressure Rating250
Seat MaterialPTFE
SeriesJP-100G Series
Softgoods MaterialEPDM/FKM/PTFE
Stem MaterialBrass
Temperature Rating250
Top to Inlet Center3.22
Trim MaterialBrass/PTFE
Additional Information
IAPMO PS-117|ISO 6509|NSF 372, 61-8, 61 Annex G
Features & Benefits
- Dezincification-resistant brass alloy Press connection with leak detection O-ring Triple sealing stem with two FKM O-ring and second generation PTFE seats Blowout-proof stem 100% factory leak tested Wetted surface contain <0.25% lead content 100% made in Italy
Documents
Jomar Valve® JP-100G Series 100-207G Ball Valve, 1-1/2 in, Press, Brass, 250 psi
BrandJomar Valve®
MFG #100-207G
Keller #713312
My Part ##
Last Ordered#
$215.34 / ea
