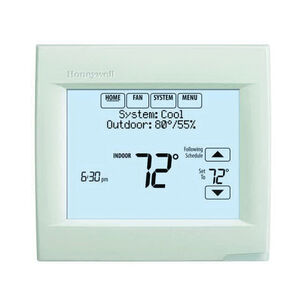

Honeywell VisionPRO® 8000 Series TH8320R1003/U Programmable Thermostat, 18 to 30 VAC, 750 mV
Honeywell VisionPRO® 8000 Series TH8320R1003/U Programmable Thermostat, 18 to 30 VAC, 750 mV
Honeywell Programmable Thermostat, VisionPRO® 8000 Series, 18 to 30 VAC, 750 mV, 50/60 Hz Frequency, Programmability: 7 days Program or Non-Programmable, Changeover: Auto, Manual, Dual Powered Battery, Hardwired Power Source, Upto 2 Heat/2 Cool Conventional System, Upto 3 Heat/2 Cool Heat Pump Stages, Switch Position: Heat-Off-Cool-Auto-EM Heat (System), Auto-On-Circ-Follow Schedule (Fan), 10 sq-in Touchscreen Display, 40 to 90 deg F Heating, 50 to 99 deg F Cooling Settings, 32 to 120 deg F Operating, 5 to 90% RH Non-Condensing Humidity, Horizontal Mounting, Cool Current: Y:1 A, Y2:0.6 A, Terminal Designation: R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, S1 S1, Electrical Connection: Screw Terminal, Fan Current: G:0.5 A, Heat Current: W2 (AUX):0.6 A, Arctic White, Dimensions: 4-5/8 in H x 4-15/16 in W x 1-1/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$670.33 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
Brandresideo
ApplicationFor residential and light commercial applications
ChangeoverAuto, Manual
ColorArctic White
Cool CurrentY:1 A, Y2:0.6 A
Dimensions4-5/8 " H x 4-15/16 " W x 1-1/8 " D
Display Type10 sq-" Touchscreen
Electrical ConnectionScrew Terminal
Fan CurrentG:0.5
Frequency Rating50/60
Heat CurrentW2 (AUX):0.6 A
Humidity Rating5 to 90% RH Non-Condensing
IncludesVisionPro 8000 Thermostat, RedLink Internet Gateway, Portable Comfort Control (PCC), Wireless Outdoor Sensor, Wireless Indoor Sensor, Wireless Entry/Exit Remote, Wireless Vent and Filter Boost Remote, TrueSteam Humidifier with Wireless Adapter and TrueZon
IndustryHVAC
Mounting TypeHorizontal
Power SourceDual Powered Battery, Hardwired
Programmability7 days Program or Non-Programmable
SeriesVisionPRO 8000 Series
StagesUpto 2 Heat/2 Cool Conventional System, Upto 3 Heat/2 Cool Heat Pump
Switch PositionHeat-Off-Cool-Auto-EM Heat (System), Auto-On-Circ-Follow Schedule (Fan)
Temperature Rating32 to 120 deg F Operating
Temperature Settings40 to 90 deg F Heating, 50 to 99 deg F Cooling
Terminal DesignationR, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, S1 S1
Voltage Rating18 to 30 VAC, 750 mV
Shipping Dimensions (L x W x H)6" x 5.25" x 2.19"
Additional Information
Title 24 Compliant
Features & Benefits
- Smart schedule programs in seconds for any lifestyle and patented interview based programming and installer setup RedLINK™ wireless communication and increase profit per job by including RedLINK™ accessories that provide comfort and convenience RedLINK™ accessories include the RedLINK™ internet gateway, portable comfort control (PCC), wireless outdoor sensor, wireless indoor sensor, wireless entry/exit remote, wireless vent and filter boost remote, TrueSTEAM™ humidifier with wireless adapter and TrueZONE® zoning panel with wireless adapter Light commercial - commercial language (occupied and unoccupied), schedule holidays and custom events, remote setback, economizer and time of day, remote setback requires the THM5421R1021 equipment interface module Plain language set up, no manual needed Alerts and user interactions log keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by a user error Saves time in troubleshooting and points the technician in the right direction, the alert and user interaction logs are viewable on a computer after you download them from the thermostat to a MicroSD card Customizable service reminders allow dealers to remind their customers when its time to call for service, when their warranty is expiring and to provide customized alerts MicroSD port for copying the installer setup, customizable reminders, custom events and holidays to multiple thermostats MicroSD port for adding the dealers contact information on the screen 1 assignable output on the TH8321 model to control humidification, dehumidification, ventilation or a stage of heating/cooling Three assignable outputs on the equipment interface module to control humidification, dehumidification, ventilation or a stage of heating/cooling, the TH8110 and TH8320 models require the use of a wireless indoor sensor to control humidification and dehumidification One assignable input can be used with a wired outdoor, indoor or discharge sensor Four assignable inputs on the equipment interface module can be used with wired outdoor, indoor or discharge sensors, occupancy sensor for remote setback and dry contact devices to trip pre-packaged or custom alerts such as a full drain pan or water leak Extend wireless range of the equipment interface module by connecting a THM4000R1000 wireless adapter to the ABCD terminals Precise temperature control (+/- 1 deg F) for reliable and consistent temperature Multiple staging options to provide comfort or energy savings
Marketing Information
VisionPRO® 8000 with RedLINK™ is a 7 days programmable touchscreen thermostat that is selectable for residential or light commercial use. The thermostat can be wired directly to the equipment, used with the THM5421R1021 equipment interface module or used with the THM4000R1000 TrueZONE wireless adapter. Works with the RedLINK™ accessories including the RedLINK™ internet gateway, portable comfort control, wireless outdoor sensor, wireless indoor sensor, wireless entry/exit remote and wireless vent and filter boost remote.
