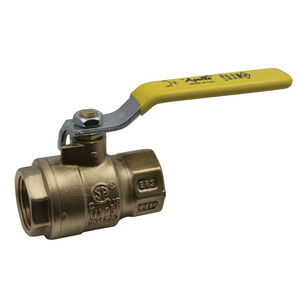

Apollo® 77F-100 Series 77F-104-01 Ball Valve, 3/4 in, FNPT, Brass, 150 psi WSP, 600 psi CWP
Apollo® 77F-100 Series 77F-104-01 Ball Valve, 3/4 in, FNPT, Brass, 150 psi WSP, 600 psi CWP
Apollo® Ball Valve, 77F-100 Series, 3/4 in Nominal, FNPT Connection, Full Port, Standard, 150 psi WSP, 600 psi CWP, Water Media, 3/4 in Orifice, 2.57 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, Lever Handle Operator, Material Standard: ANSI Z21.15, ASME B16.33, ASME B16.44, ASTM B16, ASTM B283 C37700, Brass Body, RPTFE Seat, Brass Stem, Brass/RPTFE Trim, RPTFE Packing, PVC/Steel Handle, Brass Ball, RPTFE Softgoods, Yellow, 0 to 400 deg F, 2.57 in L, Domestic/Import: Domestic, Additional Information: 29 inHg Vacuum
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$45.59 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Additional Information29 inHg Vacuum
ApplicationFor heating, cooling, steam and vacuum applications
Ball MaterialBrass
Body MaterialBrass
ColorYellow
ConfigurationStandard
Connection TypeFNPT
Dimensions2.57 " L
Domestic/ImportDomestic
Handle MaterialPVC/Steel
Inlet to Outlet Length2.57
Material StandardANSI Z21.15, ASME B16.33, ASME B16.44, ASTM B16, ASTM B283 C37700
MediaWater
Nominal Size3/4
Operator TypeLever Handle
Orifice Size3/4
Packing MaterialRPTFE
Port TypeFull
Pressure Rating150 psi WSP, 600 psi CWP
Seat MaterialRPTFE
Series77F-100 Series
Softgoods MaterialRPTFE
Stem MaterialBrass
Temperature Rating0 to 400
Top to Inlet Center1.91
Trim MaterialBrass/RPTFE
Warranty5 Year
Shipping Dimensions (L x W x H)5.25" x 1.5" x 2.5"
Additional Information
ANSI Z1157|ARRA Compliant|cCSAus CGA CR91-002|cUPC Certified|FM Approved|IAPMO Approved|MSS-SP-110|UL Listed
Features & Benefits
- Heavy pattern forged design Corrosion-resistance Premium RPTFE seats and packing Adjustable stem packing gland Blowout-proof stem Silicone-free assembly 100% factory tested Made in USA, ARRA compliant
Marketing Information
The Apollo® 77F-100 Series is a full-port forged brass ball valve suitable for a wide range of flow control applications including HVAC, fuel gas, fire protection, irrigation and more. These NPT threaded, two-piece valves combine reliable operation with maximum economy. Valves include most pertinent agency approvals. Proudly made in the USA.
