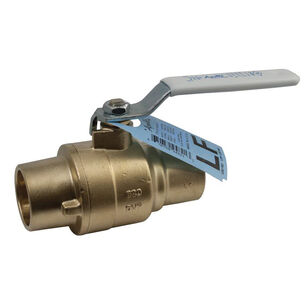

Apollo® 77FLF-200 Series 77FLF20501 Ball Valve, 1 in, Solder, Brass, 600 psi
Apollo® 77FLF-200 Series 77FLF20501 Ball Valve, 1 in, Solder, Brass, 600 psi
Apollo® Ball Valve, 77FLF-200 Series, 1 in Nominal, Solder Connection, Full Port, Standard, 600 psi, Water Media, 1.13 in Orifice, 3.73 in Inlet to Outlet Length, 2.11 in Top to Inlet Center, Lever Handle Operator, Material Standard: ASTM B16, C36000, Brass Body, RPTFE Seat, Brass Stem, Brass/RPTFE Trim, RPTFE Packing, PVC/Steel Handle, Brass Ball, RPTFE Softgoods, Lead-Free, Yellow, 0 to 350 deg F, 3.73 in L, Domestic/Import: Domestic, Additional Information: 29 inHg Vacuum
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$86.94 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Additional Information29 inHg Vacuum
ApplicationFor potable water, heating, cooling, steam and vacuum applications
Ball MaterialBrass
Body MaterialBrass
ColorYellow
ConfigurationStandard
Connection TypeSolder
Dimensions3.73 " L
Domestic/ImportDomestic
Handle MaterialPVC/Steel
IndustryPlumbing
Inlet to Outlet Length3.73
Material StandardASTM B16, C36000
MediaWater
Nominal Size1
Operator TypeLever Handle
Orifice Size1.13
Packing MaterialRPTFE
Port TypeFull
Pressure Rating600
Seat MaterialRPTFE
Series77FLF-200 Series
Softgoods MaterialRPTFE
Stem MaterialBrass
Temperature Rating0 to 350
Top to Inlet Center2.11
Trim MaterialBrass/RPTFE
Warranty5 Year
Shipping Dimensions (L x W x H)5.55" x 1.59" x 2.71"
Additional Information
ANSI Z1157-2014e1|ARRA Compliant|cUPC Certified|FM 1140|IAPMO Approved|MSS-SP-110|NSF/ANSI 61, 372
Features & Benefits
- EZ-Solder™ lead-free materials Heavy pattern forged design Blowout-proof stem Dezincification-resistant materials 100% factory tested Silicone-free assembly
Marketing Information
The Apollo® valves 77FLF-200 Series is a lead-free full-port forged brass ball valve ideal for a wide range of plumbing and heating applications, including potable water. These two-piece-style solder connection valves carry multi-agency approvals and are deigned to provide reliable operation at a competitive price. The 77FLF-200 Series valve is intended to be soft soldered into lines without disassembly. Proudly made in the USA.
Apollo® 77FLF-200 Series 77FLF20501 Ball Valve, 1 in, Solder, Brass, 600 psi
BrandApollo®
MFG #77FLF20501
Keller #718558
