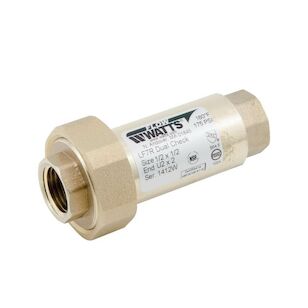

1/2 x 1/2 IN Lead Free Residential Dual Check Valve Backflow Preventer with Union Female NPT Inlet x Female NPT Outlet
1/2 x 1/2 IN Lead Free Residential Dual Check Valve Backflow Preventer with Union Female NPT Inlet x Female NPT Outlet
1/2 x 1/2 IN Lead Free Residential Dual Check Valve Backflow Preventer with Union Female NPT Inlet x Female NPT Outlet
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$185.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Backflow Preventer TypeDual Check
Body PatternIn-Line
Depth2.56"
Disc MaterialSantoprene
FinishBronze
Height4"
IndustryPlumbing
Inlet Connection Size1/2"
Inlet Connection Size Metric15 mm
Inlet Connection TypeFemale Threaded
Inlet Thread TypeNPT
MaterialLead Free Brass
Maximum Temperature Deg F180
Maximum Working Pressure Psi150
Minimum Temperature Deg F33
Outlet Connection Size1/2"
Outlet Connection Thread TypeNPT
Outlet Connection TypeFemale Threaded
Pressure OperationContinuous
Prop 65 WarningYes
Protection TypeBacksiphonage
Seat MaterialEPDM
SeriesLF7R
Weight0.7 lbs.
Width1.94"
Shipping Dimensions (L x W x H)2.562" x 1.94" x 4"
Features & Benefits
- Lead free brass body for durability
- Can be installed vertically or horizontally
- Compact design
- Meets ANSI/ASSE Standard 1024
Documents
Marketing Information
This 1/2 by 1/2 IN lead free dual check valve backflow preventer helps prevent the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. This valve consists of a lead free brass body construction, with two plastic replaceable check valves and stainless steel springs. It is designed for non-health hazard residential water system containment, continuous pressure applications and is to be installed immediately downstream of the residential water meter, in a vertical or horizontal position. The minimum working pressure is 10 psi (69 kPa) and maximum working pressure is 175 psi (12 bar).
1/2 x 1/2 IN Lead Free Residential Dual Check Valve Backflow Preventer with Union Female NPT Inlet x Female NPT Outlet
BrandWATTS®
MFG #0072203
Keller #719694
