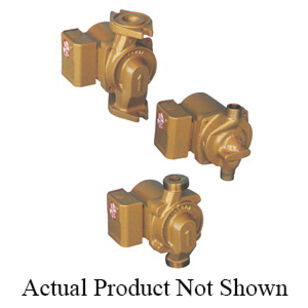

Bell & Gossett NBF Series NBF-22 103252LF Circulator Pump, 22 gpm, 92 W, 115 V, 0.8 A, 60 Hz, 150 psi Max Pressure
MFG #103252LF
Item #720309
Mfr. Part #103252LF
UPC #683328221755
Bell & Gossett Circulator Pump, NBF Series, Model: NBF-22, 22 gpm Flow Rate, 15 ft Maximum Head, 92 W, 115 V, 0.8 A, 60 Hz, 150 psi Maximum Pressure, 2940 rpm Motor Speed Rating, 1/25 hp, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Connection, Flanged Connection, 1 ph Phase, In-Line Mounting, 40 to 230 deg F, Lead-Free Bronze, 6-3/8 in H x 4-7/8 in W x 5-9/16 in D, Additional Information: Noryl Impeller Material
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$772.84Â /Â ea
In Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandBell & Gossett
Additional InformationNoryl Impeller Material
Amperage Rating0.8
Connection Size3/4 ", 1 ", 1-1/4 ", 1-1/2 "
Connection TypeFlanged
Dimensions6-3/8 " H x 4-7/8 " W x 5-9/16 " D
Flow Rate22
Frequency Rating60
HP Rating25-Jan
IndustryPlumbing
MaterialLead-Free Bronze
Maximum Head15
Maximum Pressure150
ModelNBF-22
Motor Speed Rating2940
Mounting Type"-Line
Phase1
Power Rating92
SeriesNBF Series
Temperature Rating40 to 230
Voltage Rating115
Additional Information
CSA Certified|cULus Listed
Features & Benefits
The pumps shall have a ceramic shaft supported by carbon bearings, bearings are to be lubricated by the circulating fluid
Pump body shall be lead-free bronze for NBF circulators or stainless steel for SSF circulators
Motors shall be non-overloading at any point on the pump curve, all motors to have built-in impedance protection
Low-watt, energy conserving models
High starting torque provides dependable start-ups
B&G Dura-Glide bearing system assures whisper-quiet, maintenance-free operation
Standard, universal flange-to-flange dimensions
