UL 1738 and ULC S636 Listed

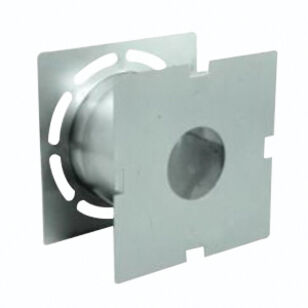

• FasNSeal Wall Pass Through FasNSeal® is for use with natural gas or propane categories II, III and IV appliances or type BH gas vent systems, having a maximum rated operating temperature of 480 deg F and a maximum positive pressure of 15 in water column FasNSeal® can be used on a wide range of applications, including high-efficiency gas boilers, furnaces, booster heaters, pool heaters, water heaters, unit heaters or tankless water heaters Use for through the wall installations Fits between standard wall studs 5-3/4 in to 11-1/2 in THK wall

All FasNSeal® (single-wall) vent lengths and components feature patented built-in mechanical locking band and triple-lipped directional gaskets. All pipes and components are engineered with smooth clean welds located 90 deg from mechanical locking bands. This construction feature allows for ease of installation. The 1/2 in air space between the inner and outer wall on FasNSeal® W2 helps to reduce the clearance to combustibles in addition to creating a heat shield for additional safety. All FasNSeal® components which come in contact with exhaust gases and condensates are now silicone-free. This important design and manufacturing feature greatly reduces the chances of system breakdown and failure. The main problems with silicone are there are too many adhesion factors which are very difficult to control and the process of binding similar materials with an epoxy, which can weaken the bond over time.
