VICF V040717PEO 4 CKV 717 E UL/FM VDS 1/2 NPT UPSTREAM
VICF V040717PEO 4 CKV 717 E UL/FM VDS 1/2 NPT UPSTREAM

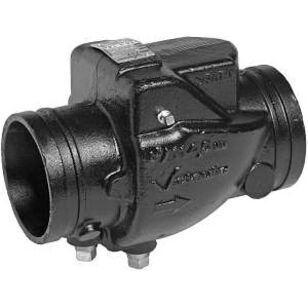

Victaulic® FIRELOCK™ Check Valve, 717 Series, 4 in Nominal, Grooved Connection, 365 psi, Water Media, 9.63 in Inlet to Outlet Length, 3.88 in Top to Inlet Center, 390 Cv Flow Coefficient (Cv), Material Standard: ASTM A536 Grade 65-45-12, Ductile Iron Body, Ductile Iron Seat, EPDM Seal, Elastomer Disc, Ductile Iron/Elastomer Trim, EPDM Softgoods, Black, Finish: Painted, 6 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$856.50 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
ApplicationFor fire protection systems
Body MaterialDuctile Iron
ColorBlack
Connection TypeGrooved
Dimensions6 " H
Disc MaterialElastomer
Domestic/ImportDomestic
FinishPainted
Flow Coefficient (Cv)390
IndustryFire Protection
Inlet to Outlet Length9.63
Material StandardASTM A536 Grade 65-45-12
MediaWater
Nominal Size4
Pressure Rating365
Seal MaterialEPDM
Seat MaterialDuctile Iron
Series717 Series
Softgoods MaterialEPDM
Top to Inlet Center3.88
Trim MaterialDuctile Iron/Elastomer
Additional Information
CCC Marked|CE Marked|cULus Listed|FM Approved|LPCB Listed|VDS Approved|UKCA Approved
Features & Benefits
- Features an elastomer encapsulated disc with an electroless nickel-plated seat Prevents backflow Single disc mechanism incorporates a spring-assisted feature for non-slamming operation Can be installed either vertically (flow upwards only) or horizontally Valve body cast with arrow indicator to assist with proper valve orientation Rated for ambient temperature use in fire protection systems
VICF V040717PEO 4 CKV 717 E UL/FM VDS 1/2 NPT UPSTREAM
BrandVictaulic®
MFG #V040717PE0
Keller #72382
My Part ##
Last Ordered#
$856.50 / ea
