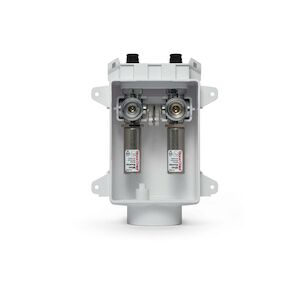

Sioux Chief OxBox™ ONE™ 696 Series 696-2413WF Compact Washing Machine Outlet Box With Frame and Arrester, 1/2 x 3/4 in
Sioux Chief OxBox™ ONE™ 696 Series 696-2413WF Compact Washing Machine Outlet Box With Frame and Arrester, 1/2 x 3/4 in
Sioux Chief Compact Washing Machine Outlet Box With Frame and Arrester, 696 Series, 1/2 x 3/4 in, F1960 PEX x MHT Connection, ABS/Brass, 200 deg F, 5-1/2 in H x 4 in W x 3-1/2 in D, Domestic/Import: Domestic, Additional Information: 150 psig Pressure Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$74.15 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
Additional Information150 psig Pressure Rating
Connection TypeF1960 PEX x MHT
Dimensions5-1/2 " H x 4 " W x 3-1/2 " D
Domestic/ImportDomestic
MaterialABS/Brass
Series696 Series
Size1/2 x 3/4
Temperature Rating200
Additional Information
ASME A112.18.1|ASSE 1010|cUPC Certified|IAPMO PS 54-2021a|NSF 372
Features & Benefits
- Patent #7,360,553 & #7,735,511 Compact, single-box design mounts securely to stud or between studs Durable ABS boxes with quarter-turn ball valves Test cap in drain box removes easily with pliers Included debris cover protect boxes from dust, mud, and paint
Documents
Marketing Information
Sioux Chief 696 series OxBox™ outlet box shall be used where necessary in plumbing systems. Unit shall allow for mounting on-stud or between studs, and include plated, 1/4-turn valves with 3/4" MHT outlets. Valve outlets shall be provided with tamper-resistant test caps. Valve handles on arrester models can be operated together (single throw) or independently. Metal support bracket can be installed into tracks of box. Drain box shall have a testable 5/8" nipple on drain cover. Designed in accordance with IAPMO PS 54-2021a.
Sioux Chief OxBox™ ONE™ 696 Series 696-2413WF Compact Washing Machine Outlet Box With Frame and Arrester, 1/2 x 3/4 in
BrandSioux Chief
MFG #696-2413WF
Keller #724394
