LSP OBFPS-104-RK-LL FIRE RATED BOX WIRSBO CONN
LSP OBFPS-104-RK-LL FIRE RATED BOX WIRSBO CONN

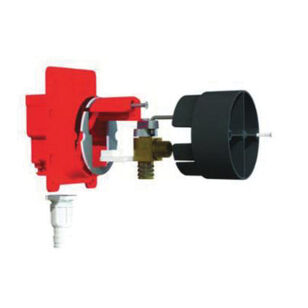

LSP™ FireStop™ Pull Stop Box™ Outlet Box Rough-In Kit, 1/2 in Connection, Uponor PEX Connection, Ball Valve, 3-1/2 in Box Width, 2 in Box Depth, 4-1/8 in Box Height, ABS Box, Brass Valve, Additional Information: 20 to 120 psi Pressure Rating, 40 to 160 deg F Temperature Rating, Lead-Free
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$32.56 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLSP™
Additional Information20 to 120 psi Pressure Rating, 40 to 160 deg F Temperature Rating, Lead-Free
Box Depth2
Box Height4-1/8
Box MaterialABS
Box Width3-1/2
Connection Size1/2
Connection TypeUponor PEX
IncludesBox, Valve and Protective Cover
Valve MaterialBrass
Valve TypeBall
Warranty5 Year Limited
Additional Information
ASME A112.18.1|CSA B125.1 4577|IAPMO Listed|NSF/ANSI 61-2018/372-2016|UPC Certified
Features & Benefits
- Must use metal brackets during installation Patented design moves the angle stop for toilet and lavatory water supply into the wall Allows angle stops to be installed during the rough-in phase and be pressure tested for reduced liability and labor Easy-to-install vertically, upside down and horizontally Eliminates the need for a copper stub out Unique push-pull handle opens and closes the valve Integrated, replaceable valve has a reliable triple O-ring design inlet seal 1 and 2 hr fire-rated Intumescent pad seals through wall penetration Ball valve design with PTFE seats
Documents
Marketing Information
The FireStop™ Pull Stop Box™ is constructed of fire-resistant ABS with a factory-mounted intumescent pad. The OBFPS Series are Warnock Hersey certified to ASTM E-814 and CAN/ULC S115 with 1 and 2 hr listings. Suitable for wood or metal studs and for all pipe-types.
