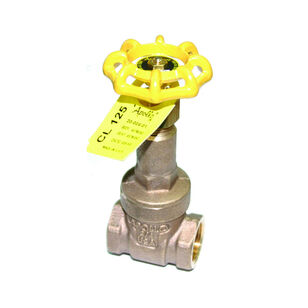

Apollo® 30 Series 3000301 Rising Stem Gate Valve, 1/2 in, Conical FNPT, Bronze, 125 psi, 200 psi, 12.5 gpm
Apollo® 30 Series 3000301 Rising Stem Gate Valve, 1/2 in, Conical FNPT, Bronze, 125 psi, 200 psi, 12.5 gpm
Apollo® Rising Stem Gate Valve, 30 Series, 1/2 in Nominal, Conical FNPT Connection, Full Port, 125 psi, 200 psi, Pressure Class: 125 lb, 12.5 gpm Flow Rate, Handwheel Actuator, Bronze Body, Brass Stem, Bronze Disc, Grafoil® Packing, Malleable Iron Handle, Material Standard: ASTM B62, Lead-Free, Yellow, 2.03 in L x 4.85 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$117.08 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Actuator TypeHandwheel
ApplicationFor heating, cooling, steam
Body MaterialBronze
ColorYellow
Connection TypeConical FNPT
Dimensions2.03 " L x 4.85 " H
Disc MaterialBronze
Domestic/ImportDomestic
Flow Rate12.5
Handle MaterialMalleable Iron
Material StandardASTM B62
Nominal Size1/2
Packing MaterialGrafoil
Port TypeFull
Pressure Class125
Pressure Rating125 psi, 200 psi
Series30 Series
Stem MaterialBrass
Warranty5 Year
Shipping Dimensions (L x W x H)2" x 1.5" x 5.25"
Additional Information
ARRA Compliant|ASME B1.20.1|CRN 0C14667.5|CSA B51|MSS SP-80
Features & Benefits
- Screwed in bonnet Dezincification-resistant bronze construction Guided solid bronze disc wedge Back seat protection Adjustable graphite stem packing Rugged malleable iron handwheel 100% factory tested 100% cast, machined and assembled in the USA
Documents
Marketing Information
The Apollo® Model 101T (30 Series) Class 125 gate valve provides a cost-effective Made in the USA alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled and tested in South Carolina. The Apollo® gate valve is ideal for use in a wide variety of plumbing and heating applications including building service piping systems.
