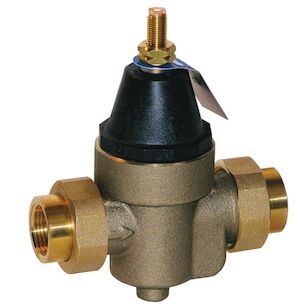

WATTS® LFN45B-M1 Series 0009479 Pressure Reducing Valve, 3/4 in Nominal, Union FNPT, 25 to 75 psi, 33 to 180 deg F
WATTS® LFN45B-M1 Series 0009479 Pressure Reducing Valve, 3/4 in Nominal, Union FNPT, 25 to 75 psi, 33 to 180 deg F
WATTS® Pressure Reducing Valve, LFN45B-M1 Series, 3/4 in Nominal, Union FNPT Connection, 25 to 75 psi, Water Media, 3-7/16 in Inlet to Outlet Length, 4-9/16 in Top to Inlet Center, Copper Body, Thermoplastic Seat, Elastomer Disc, Elastomer Softgoods, Lead-Free, 33 to 180 deg F, 2-1/4 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$429.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialCopper
Connection TypeUnion FNPT
Dimensions2-1/4 " W
Disc MaterialElastomer
Inlet to Outlet Length3-7/16
MediaWater
Nominal Size3/4
Pressure Rating25 to 75
Seat MaterialThermoplastic
SeriesLFN45B-M1 Series
Softgoods MaterialElastomer
Temperature Rating33 to 180
Top to Inlet Center4-9/16
Shipping Dimensions (L x W x H)5.625" x 7.38" x 2.63"
Additional Information
ANSI A112.26.2|ASSE 1003|BAA Compliant|CSA B356|IAPMO Certified|MiL-V-18146B Type I|Southern Standard Plumbing Code
Features & Benefits
- Sealed spring cage for accessible outdoor or pit installations NPT threaded female union inlet and outlet Integral stainless steel strainer removable for cleaning Thermoplastic seat and cage
Marketing Information
This 3/4 in lead-free water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead-free cast copper silicon alloy body construction, double union threaded female inlet and outlet connection, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 deg F (0.5 to 82 deg C). Suitable for up to 400 psi (27.6 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
WATTS® LFN45B-M1 Series 0009479 Pressure Reducing Valve, 3/4 in Nominal, Union FNPT, 25 to 75 psi, 33 to 180 deg F
BrandWATTS®
MFG #0009479
Keller #726356
My Part ##
Last Ordered#
$429.00 / ea
