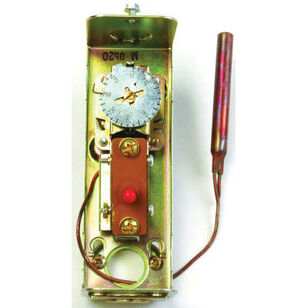

Honeywell L4006E1067 Aquastat, SPST, Horizontal/Vertical Mounting, 130 to 270 deg F, 10 to 25 deg F Differential
Honeywell L4006E1067 Aquastat, SPST, Horizontal/Vertical Mounting, 130 to 270 deg F, 10 to 25 deg F Differential
Honeywell Aquastat, 3/8 in x 2-7/8 in Copper Bulb, 3 in Capillary Length, 1/2 in NPT Well Spud, 0.25 A at 0.25 to 12 VDC, Full Load: 8 A at 120 VAC, 13 A at 240 VAC, Locked Rotor: 48 A at 120 VAC, 30.6 A at 240 VAC Contact, SPST, Horizontal/Vertical Mount, 130 to 270 deg F, 10 to 25 deg F Differential, 2 W x 8-5/8 in H x 2-1/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$639.20Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Bulb Size3/8 " x 2-7/8 " Copper
Capillary Length3
Contact ConfigurationSPST
Contact Rating0.25 A at 0.25 to 12 VDC, Full Load: 8 A at 120 VAC, 13 A at 240 VAC, Locked Rotor: 48 A at 120 VAC, 30.6 A at 240 VAC
Differential Temperature10 to 25
Dimensions2 W x 8-5/8 " H x 2-1/8 " D
IndustryHVAC
Mounting TypeHorizontal/Vertical
Temperature Rating130 to 270
Well Spud Size1/2 " NPT
Additional Information
AGA|CSA Certified|UL Listed
Features & Benefits
- Totally enclosed micro switch snap acting switches operate on temperature rise to setpoint Visible control point scale and external adjustments screw permit easy setting Horizontal or vertical insertion of the sensing element Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications Direct or well immersion of the sensing element Includes heat-conductive compound, well adapter
Marketing Information
Aquastat controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required. Honeywell's L4006 are used in applications that utilize the existing wells.
Honeywell L4006E1067 Aquastat, SPST, Horizontal/Vertical Mounting, 130 to 270 deg F, 10 to 25 deg F Differential
BrandHoneywell
MFG #L4006E1067/U
Keller #72663
