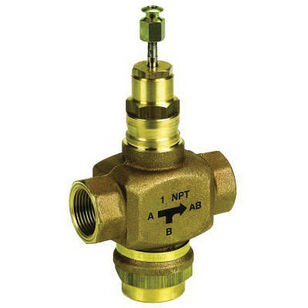

Honeywell V5013N1089/U Globe Valve, 1-1/2 in Nominal, Red Brass Body
Honeywell V5013N1089/U Globe Valve, 1-1/2 in Nominal, Red Brass Body
Honeywell Globe Valve, 1-1/2 in Nominal, FNPT Connection, 217 lb/sq-in at 248 deg F Safe Operating, 240 lb/sq-in Differential Close-Off, Number of Ports/Ways: 3-Way, Red Brass Body, Brass Seat, Stainless Steel Stem, Brass Disc, Brass Ball Trim, Teflon/EPDM Packing, 36 to 248 deg F Water, 7-13/16 in H x 4-3/4 in W x 1-13/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$721.97Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Body MaterialRed Brass
Connection TypeFNPT
Dimensions7-13/16 " H x 4-3/4 " W x 1-13/16 " D
Disc MaterialBrass
IndustryHVAC
Nominal Size1/1/2002"
Number of Ports/Ways3-Way
Packing MaterialTeflon/EPDM
Pressure Rating217 lb/sq-" at 248 deg F Safe Operating, 240 lb/sq-" Differential Close-Off
Seat MaterialBrass
Stem MaterialStainless Steel
Temperature Rating36 to 248 deg F Water
Trim MaterialBrass Ball
Additional Information
CRN Number 0C0861.9087YTN/0C0861.123
Features & Benefits
- Low seat leakage rating, less than 0.05% Spring-loaded, self-adjusting packing 50:1 rangeability per VDI/VDE 2173 Constant total flow throughout full stem travel Accurate positioning to ensure state-of-the-art temperature control Valves utilize direct mounting, electric or pneumatic valve actuators, Q5001 linkage with Modutrol motor or Q5020/Q5022 linkages with direct coupled actuators to operate the valve Repack and rebuild kits available for field servicing Not suitable for combustible gases Three-way mixing, A-B-AB porting body pattern Linear (B-AB), equal percentage (A-AB) Flow characteristic Chilled or hot water with upto 50% glycol controlled fluid 0.05% of Cv leakage
Marketing Information
The V5013N is a 3-way threaded globe valve that controls hot water, cold water, and glycol solutions (up to 50% concentration), in heating or cooling HVAC applications. The valves direct flow from one or two inlets to a common outlet.
