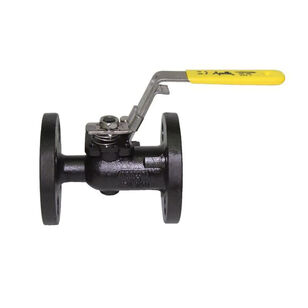

Apollo® 88A-200 Series 88A-20A-01 Ball Valve, 4 in, Flanged, Steel, 150 psig
Apollo® 88A-200 Series 88A-20A-01 Ball Valve, 4 in, Flanged, Steel, 150 psig
Apollo® Ball Valve, 88A-200 Series, 4 in Nominal, Flanged Connection, Full Port, Standard, 150 psig, Gas, Water Media, 4 in Orifice, 9 in Inlet to Outlet Length, 9.99 in Top to Inlet Center, Handle Operator, 2016 Cv Flow Coefficient (Cv), Material Standard: ASME B16.5, ASME B16.10, ASME B16.34, ASTM A216 WCB, ASTM A108, ASTM A193 B7, ASTM A366, ASTM A366, ASTM A193 Grade B7, ASTM A194 Grade 2H, Steel Body, TFM Seat, Carbon Steel Stem, RPTFE Seal, Carbon Steel/TFM/RPTFE Trim, Steel Handle, Carbon Steel Ball, PTFE/RPTFE/TFM Softgoods, Yellow, Finish: Chrome-Plated, 9 in L x 15.12 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,389.03 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
ApplicationFor natural gas and compressed air
Ball MaterialCarbon Steel
Body MaterialSteel
ColorYellow
ConfigurationStandard
Connection TypeFlanged
Dimensions9 " L x 15.12 " H
Domestic/ImportDomestic
FinishChrome-Plated
Flow Coefficient (Cv)2016
Handle MaterialSteel
Inlet to Outlet Length9
Material StandardASME B16.5, ASME B16.10, ASME B16.34, ASTM A216 WCB, ASTM A108, ASTM A193 B7, ASTM A366, ASTM A366, ASTM A193 Grade B7, ASTM A194 Grade 2H
MediaGas, Water
Nominal Size4
Operator TypeHandle
Orifice Size4
Port TypeFull
Pressure Rating150
Seal MaterialRPTFE
Seat MaterialTFM
Series88A-200 Series
Softgoods MaterialPTFE/RPTFE/TFM
Stem MaterialCarbon Steel
Top to Inlet Center9.99
Trim MaterialCarbon Steel/TFM/RPTFE
Warranty5 Year
Shipping Dimensions (L x W x H)10.03" x 4.62" x 7.16"
Additional Information
API-608|CSA Certified|MSS-SP-25, SP-72|UL Listed
Features & Benefits
- Two-position locking device (valves 6 in FP, 8 in SP and smaller) Chevron-style adjustable stem seals ISO 5211 mounting pad bolt pattern
Marketing Information
The 88A-200 carbon steel class 150 standard port ball valve is a superior solution that ensures efficient fluid flow control. This product is fortified with numerous features like a two-position locking device and chevron-style adjustable stem seals. With its blowout-proof stem design, anti-static grounded ball and stem and a cast boss for bleed/drain port, this valve ensures top-tier performance and reliability.
