ASTM D2299

• Earthquake code compliant for use in the relevant West Coast locations Extremely lightweight, the UltraLite® pad is a concrete pad at the weight of plastic, about 2.5 sq-ft/lb Concrete outer skin and EPS foam core provide flexibility and vibration dampening Flat bottom design provides excellent resistance to sinking and settling The textured surface of the UltraLite® prevents equipment sliding and allows water drainage Drillable for securing unit (1/4 x 1-1/4 in Tapcon® recommended) either side or top surface Freeze/thaw, UV, chemical and flame-resistant for long term life outdoors Tested per ASTM D2299 with refrigerants, synthetic canine urine, compressor oil or salt solution The UltraLite® pad performs extraordinarily well under strict testing criteria, it does not craze, soften or delaminate UltraLite® has a proven resistance against R-22 and R-134a, compressor oil, salt solution and synthetic canine urine The engineered polystyrene core in the UltraLite® lightweight concrete pad absorbs and dampens vibration associated with normal operation of a condensing unit The UltraLite® lightweight concrete pad is specifically engineered to have long term exterior weather resistance The UltraLite® lightweight concrete pad literally installs in seconds while providing a solid foundation for the condensing unit The textured surface of the UltraLite® prevents equipment sliding and is resistant to heating caused by the compressor

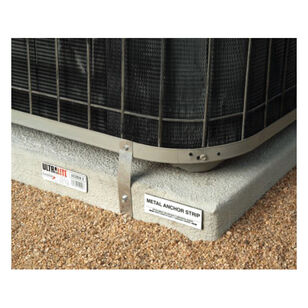

The UltraLite® UC3232-3CA is an earthquake code compliant lightweight concrete composite equipment pad designed to support HVAC condensers and heat pumps and other outdoor equipment. Required nearly exclusively in Southern California, the UltraLite® pad is available for compliance with strict attachment provisions detailed in earthquake prone local building codes. Only available in most of Southern California and portions of Washington and Oregon.
