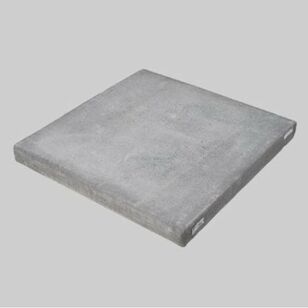

UltraLite EQ Pad 40x40x3
UltraLite EQ Pad 40x40x3
UltraLite EQ Pad 40x40x3
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$350.28 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandDiversiTech®
ApplicationCondensers, Heat Pump
CollectionUltralite
ColorGray
Depth40"
DrillableYes
FinishGray
Height3"
IndustryHVAC
Length40in."
Load Capacity592 lb.
MaterialUltra-Lightweight Concrete Composite
Pad Bottom DesignFlat|Solid
Product LineUltralite
Prop 65 WarningYes
RatingUV Resistant
ShapeSquare
StandardsASTM C67, ASTM D2299
TextureRough
Weight34 lbs.
Width40"
Features & Benefits
- Earthquake code compliant for use in the relevant West Coast locations
- Extremely lightweight
- the UltraLite pad is a concrete pad at the weight of plastic
- about 2.5 lbs. per square foot
- Concrete outer skin and EPS foam core provide flexibility and vibration dampening
- Flat bottom design provides excellent resistance to sinking and settling
- The textured surface of the UltraLite prevents equipment sliding and allows water drainage
- Extensive selection of sizes available
- Drillable for securing unit (1/4 x 1-1/4'' Tapcon recommended)
- either side or top surface
- Freeze/thaw
- UV
- chemical and flame-resistant for long-term life outdoors
- Tested per ASTM D2299 with refrigerants
- synthetic canine urine
- compressor oil or salt solution.
Documents
Marketing Information
The UltraLite UC4040-3CA is an earthquake code compliant lightweight concrete composite equipment pad designed to support HVAC condensers and heat pumps and other outdoor equipment. Required nearly exclusively in Southern California, the UltraLite pad is available for compliance with strict attachment provisions detailed in earthquake prone local building codes. Only available in most of Southern California and portions of Washington and Oregon.
UltraLite EQ Pad 40x40x3
BrandDiversiTech®
MFG #UC4040-3CA
Keller #728782
