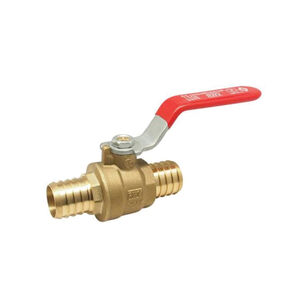

RWV® ECO-VALVE 5009AB Series 5009AB-1/2 Ball Valve, 1/2 in, PEX, Brass, 400 psi
RWV® ECO-VALVE 5009AB Series 5009AB-1/2 Ball Valve, 1/2 in, PEX, Brass, 400 psi
RWV® ECO-VALVE Ball Valve, 5009AB Series, 1/2 in Nominal, PEX Connection, Full Port, 400 psi, Gas, Oil, Water Media, 0.35 in Orifice, 2.31 in Inlet to Outlet Length, 1.38 in Top to Inlet Center, Handle Operator, Material Standard: ASTM B927 C27453, ASTM A36, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, NBR Packing, Steel Handle, Brass Ball, NBR/PTFE Softgoods, Lead-Free, 15 to 160 deg F, 2.31 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$18.89 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRWV®
ApplicationFor PEX tubing
Ball MaterialBrass
Body MaterialBrass
Connection TypePEX
Dimensions2.31 " L
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length2.31
Lead-FreeYes
Material StandardASTM B927 C27453, ASTM A36
MediaGas, Oil, Water
Nominal Size1/2
Operator TypeHandle
Orifice Size0.35
Packing MaterialNBR
Port TypeFull
Pressure Rating400
Seat MaterialPTFE
Series5009AB Series
Softgoods MaterialNBR/PTFE
Stem MaterialBrass
Temperature Rating15 to 160
Top to Inlet Center1.38
Trim MaterialBrass/PTFE
Additional Information
California AB1953|CSA B125.3|cTLus Listed|NSF 61-G, 372
Features & Benefits
- Virgin PTFE seats Double NBR O-ring packing Blowout-proof stem
Marketing Information
Lead-free ball valves have spherical discs that control liquid or gas flow through a port by rotating to open or close the fluid passageway. Our lead-free ball valves offer tight shut-off, with a maximum operating temperature of 160 deg F and a maximum operating pressure of 600 psi. Different sizes are available to accommodate various flow rates.
