6 In Triple Duty Valve
6 In Triple Duty Valve
6 In Triple Duty Valve
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$7,172.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Depth28"
Height15"
IndustryPlumbing
Inlet Connection Size6"
Inlet Connection Size Metric150 mm
Inlet Connection TypeGrooved Joint
MaterialDuctile Iron
Maximum Temperature Deg F230
Maximum Working Pressure Psi375
Outlet Connection Size6"
Outlet Connection TypeGrooved Joint
SeriesTDV
Weight75 lbs.
Width20"
Shipping Dimensions (L x W x H)28" x 20" x 15"
Features & Benefits
- Grooved connection
- Engineered resin seat
- Stainless steel valve stem
- Anti-rotation lug
Documents
Marketing Information

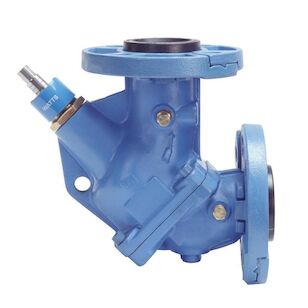

This 6 inch triple duty valve, Model TDV, is a triple function valve used in flow measurement applications to eliminate the requirement of a hand-tight shutoff valve, a check valve, and a flow control valve on the pump system. It consists of ductile iron body construction with grooved ends and anti-rotation lugs, two NPT connections on each side of the valve seat, two brass metering ports with non-slam silent check valve and gasket cap, brass drain tap, bronze disc, stainless steel valve stem, and stainless steel spring.
6 In Triple Duty Valve
BrandWATTS®
MFG #0036614
Keller #729041
My Part ##
Last Ordered#
$7,172.00Â /Â ea
