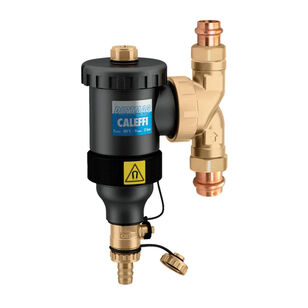

Caleffi DIRTMAG® NA5453 Series NA545396 Dirt Separator With Neodymium Rare Earth Magnet, 1 in, Sweat Union
Caleffi DIRTMAG® NA5453 Series NA545396 Dirt Separator With Neodymium Rare Earth Magnet, 1 in, Sweat Union
Caleffi DIRTMAG® Dirt Separator With Neodymium Rare Earth Magnet, NA5453 Series, 1 in Nominal, Sweat Union Connection, 45 psi, 32 to 195 deg F, 10 gpm Flow Rate, 12 Cv Flow Coefficient (Cv), 5 um Particle Separation Capacity, Brass/Technopolymer, Additional Information: 12 fl-oz Dosing Capacity
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$287.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandCaleffi
Additional Information12 fl-oz Dosing Capacity
Connection TypeSweat Union
Flow Coefficient (Cv)12
Flow Rate10
MaterialBrass/Technopolymer
Nominal Size1
Particle Separation Capacity5
Pressure Rating45
SeriesNA5453 Series
Temperature Rating32 to 195
Additional Information
12 fl-oz Dosing Capacity
Features & Benefits
- The DIRTMAG® removes both ferrous and non-ferrous impurities continuously in a sealed hydronic heating and cooling system A removable magnetic ring and large drain valve make the DIRTMAG® quick and easy-to-flush collected dirt and ferrous impurities, including magnetite A large low velocity zone dirt collection chamber reduces the frequency of cleaning, which can also be done while the system is operating A powerful removable external magnetic ring attracts ferrous impurities with 2-1/2X the removal performance of a standard dirt separator DIRTMAG® will separate dirt particles down to 5 um and up to 100% of ferrous impurities, including magnetite, during multiple passes of system fluid This multi-function device, with isolating valves, can also be used as a dosing point to inject chemical additives into the hydronic circuit
Marketing Information
Dirt separator with magnet brass mounting housing. Ferrous impurities separation efficiency - 100%. Drain valve with hose connection. Top dosing point port. Dosing capacity - 12 fl-oz. Manual screw air vent.
Caleffi DIRTMAG® NA5453 Series NA545396 Dirt Separator With Neodymium Rare Earth Magnet, 1 in, Sweat Union
BrandCaleffi
MFG #NA545396
Keller #730518
My Part ##
Last Ordered#
$287.00 / ea
