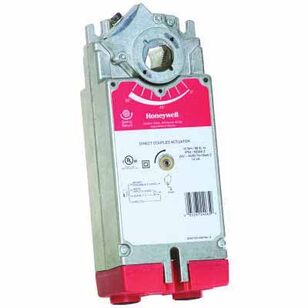

Honeywell MS4110A1002/U Damper Actuator, 100 - 250 VAC, 45 sec Nominal at 60 Hz Driving, 20 sec Spring Return Timing
Honeywell MS4110A1002/U Damper Actuator, 100 - 250 VAC, 45 sec Nominal at 60 Hz Driving, 20 sec Spring Return Timing
Honeywell Damper Actuator, 100 - 250 VAC, 50/60 Hz, 45 V-A Driving, 13 V-A Holding VA, Enclosed Screw Terminal Strip (22 - 14 AWG) Electrical Connection, 45 sec Nominal at 60 Hz Driving, 20 sec Spring Return Timing, Aluminum, 88 in-lb Torque, 95 kohm Minimum Input, 40 dBA Driving, 20 dBA Holding, -40 to 140 deg F Ambient, NEMA 2 Enclosure, 5 - 95% RH Non-Condensing Humidity, 3.94 in W x 9.72 in H x 2.95 in D, 2-Position SPST Control Signal, Direct Coupled Mounting, 3/8 - 1.06 in Round or 3/8 - 11/16 in Square Shaft, 95 +/-3 deg Stroke
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$535.13Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
ApplicationFor HVAC systems
Control Signal2-Position SPST
Dimensions3.94 " W x 9.72 " H x 2.95 " D
Electrical ConnectionEnclosed Screw Terminal Strip (22 - 14 AWG)
Enclosure TypeNEMA 2
Frequency Rating50/60
Humidity Rating5 - 95% RH Non-Condensing
IncludesMounting Bracket, Self-Centering Shaft Adapter, 3 mm Crank
Input Impedance95 kohm Minimum
MaterialAluminum
Mounting TypeDirect Coupled
Noise Level40 dBA Driving, 20 dBA Holding
Shaft Size3/8 - 1.06 " Round or 3/8 - 11/16 " Square
Stroke95 +/-3 deg
Temperature Rating-40 to 140 deg F Ambient
Timing Range45 sec Nominal at 60 Hz Driving, 20 sec Spring Return
Torque Rating88
VA Rating45 V-A Driving, 13 V-A Holding
Voltage Rating100 - 250
Additional Information
cUL Listed, C22.2 Number 24-93 Certified, UL 873 Listed, cUL Listed, N314 C-Tick Approval, 89/336/ECC, 73/23/EEC CE Certified
Features & Benefits
- Brushless DC sub motor with electronic stall protection for floating/modulating models Brush DC sub motor with electronic stall protection for 2-position models Self-centering shaft adapter (shaft coupling) for wide range of shaft sizes Models available for use with two-position, single pole single throw (SPST), line- (Series 40) or low- (Series 80) voltage controls Models available for use with floating or switched single-pole, double-throw (SPDT) (Series 60) controls Models available for use with proportional current or voltage (series 70) controls Models available with combined floating/modulating control in a single device Models available with adjustable start (zero) and span Models available with line voltage internal end switches Access cover to facilitate connectivity Metal housing with built-in mechanical end limits Spring return direction field-selectable Shaft position indicator and scale Manual winding capability with locking function
Documents
Honeywell MS4110A1002/U Damper Actuator, 100 - 250 VAC, 45 sec Nominal at 60 Hz Driving, 20 sec Spring Return Timing
BrandHoneywell
MFG #MS4110A1002/U
Keller #730832
