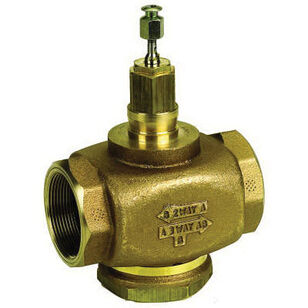

Honeywell V5011N1057/U Globe Valve, 3/4 in Nominal, Red Brass Body
Honeywell V5011N1057/U Globe Valve, 3/4 in Nominal, Red Brass Body
Honeywell Globe Valve, 3/4 in Nominal, FNPT Connection, 217 lb/sq-in at 248 deg F Safe Operating, 240 lb/sq-in Differential Close-Off, Pressure Class: 150 lb, Number of Ports/Ways: 2-Way, Red Brass Body, Stainless Steel Seat, Stainless Steel Stem, Brass Disc, Brass Ball Trim, Teflon Packing, 36 to 248 deg F Water, 6-5/8 in H x 3-1/4 in W x 1-9/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$266.16Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Body MaterialRed Brass
Connection TypeFNPT
Dimensions6-5/8 " H x 3-1/4 " W x 1-9/16 " D
Disc MaterialBrass
IndustryHVAC
Nominal Size3/4"
Number of Ports/Ways2-Way
Packing MaterialTeflon
Pressure Class150 lbs.
Pressure Rating217 lb/sq-" at 248 deg F Safe Operating, 240 lb/sq-" Differential Close-Off
Seat MaterialStainless Steel
Stem MaterialStainless Steel
Temperature Rating36 to 248 deg F Water
Trim MaterialBrass Ball
Additional Information
ANSI/ASME 150, CRN Number 0C0861.9087YTN/0C0861.104 Certified
Features & Benefits
- Direct and reverse acting High pressure steam models with stainless steel trim Spring loaded, self-adjusting packing Stainless steel stem prevents corrosion Valve designs provide equal percentage characteristics of flow for close control of water and linear characteristic of flow for close control of steam or chilled water Valves utilize direct mounting, electric or pneumatic linear valve actuators, Q5001 linkage with Modutrol motor or Q5020/Q5022A linkages with direct coupled rotary actuators to operate the valve 1-3/8 in bonnet Stem down to close valve action Chilled or hot water with upto 50% glycol controlled fluid Brass cartridge 3/4 in stem travel Equal percentage flow characteristic Brass plug 0.05% of Cu seat leakage Not suitable for combustible gases
Honeywell V5011N1057/U Globe Valve, 3/4 in Nominal, Red Brass Body
BrandHoneywell
MFG #V5011N1057/U
Keller #730834
My Part ##
Last Ordered#
$266.16Â /Â ea
