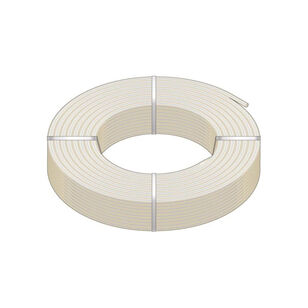

HeatLink® PureLink® Plus 20322 PEX-a Tubing, 3/4 in, 300 ft L, Polyethylene, 0.07 in Thick Wall, 0.671 in ID, 7/8 in OD
HeatLink® PureLink® Plus 20322 PEX-a Tubing, 3/4 in, 300 ft L, Polyethylene, 0.07 in Thick Wall, 0.671 in ID, 7/8 in OD
HeatLink® PureLink® Plus PEX-a Tubing, 3/4 in Nominal, 0.671 in Inside Diameter, 7/8 in Outside Diameter, 300 ft Length, Polyethylene, Material Construction: Polyethylene, Blue, 4-1/2 in Bend Radius, 0.07 in Wall Thickness, 100 psi Working Pressure, 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1.81 / ft
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHeatLink®
ApplicationFor cold or hot water line applications
Bend Radius4-1/2
ColorBlue
IndustryPlumbing
Inside Diameter0.671
Length300
MaterialPolyethylene
Material ConstructionPolyethylene
Nominal Size3/4
Outside Diameter7/8
Temperature Rating180
Wall Thickness0.07
Working Pressure100
Additional Information
ANSI/NSF 14/61/372|ANSI/UL 263|ASTM E84/F876/F877/F1807/F1960/F2023/F2080/F2098/F2159/F2657|CAN/ULC S101|CAN/ULC S102.2-2007/2010|cNSFus-pw-G - PEX 5106|cQAIus P371|CSA B137.5|IAPMO UPC PPI TR-4|ICC ES PMG 1087|UL/ULC Listed
Features & Benefits
- Flexible - easy installations UV stabilized Resists scaling and corrosion Freeze and chemical resistance
Marketing Information
High molecular crosslinked polyethylene (PEX) with minimum bending radius of 6X the diameter at 68 deg F. Maximum operating temperature 180 deg F at 100 psi. Black printing so tubing can be used for cold or hot water lines. The PureLink® plus PEX-a tubing may be used with fittings that are compliant with ASTM F1807/F1960/F2080 standards.
HeatLink® PureLink® Plus 20322 PEX-a Tubing, 3/4 in, 300 ft L, Polyethylene, 0.07 in Thick Wall, 0.671 in ID, 7/8 in OD
BrandHeatLink®
MFG #20322
Keller #730985
