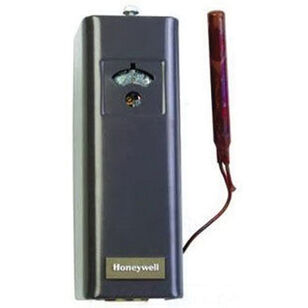

resideo L6006A1145 Aquastat, SPDT, Surface Mounting, Gray, 100 to 240 deg F, 5 to 30 deg F Differential
resideo L6006A1145 Aquastat, SPDT, Surface Mounting, Gray, 100 to 240 deg F, 5 to 30 deg F Differential
resideo Aquastat, 8 A, 120 V, 200 psi, 3/8 in Dia x 2-7/8 in L Bulb, 3 in Capillary Length, 1/2 in, 3/4 in Well Spud, NPT Connection, 5.1 A, 8 A Full Load, 30.6 A, 48 A Locked Rotor Contact Rating, Contact Configuration: SPDT, 1-1/2 in, 3 in Insulation Depth, Remote Bulb Sensing Element, Surface Mounting, Gray, 100 to 240 deg F, 5 to 30 deg F Differential Temperature, 5-5/8 in H x 2 in W x 2-1/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$460.62 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Amperage Rating8
Bulb Size3/8 " Dia x 2-7/8 " L
Capillary Length3
ColorGray
Connection TypeNPT
Contact ConfigurationSPDT
Contact Rating5.1 A, 8 A Full Load, 30.6 A, 48 A Locked Rotor
Differential Temperature5 to 30
Dimensions5-5/8 " H x 2 " W x 2-1/8 " D
IndustryHVAC
Insulation Depth1-1/2 ", 3 "
Mounting TypeSurface
Pressure Rating200
Sensing ElementRemote Bulb
Temperature Rating100 to 240
Voltage Rating120
Well Spud Size1/2 ", 3/4 "
Additional Information
CSA LR95329-1|UL MP466/MBPR2
Features & Benefits
- Totally enclosed Micro Switch™ snap-acting switches operate on temperature rise to set point Visible control point scale and external adjustment screw permit easy setting Horizontal or vertical insertion of the sensing element Direct, well immersion or surface-mounting of the sensing element available Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications Direct or well immersion Tradeline models include heat-conductive compound
Marketing Information
Aquastat® controllers are immersion-type devices for limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required.
resideo L6006A1145 Aquastat, SPDT, Surface Mounting, Gray, 100 to 240 deg F, 5 to 30 deg F Differential
BrandHoneywell
MFG #L6006A1145/U
Keller #73121
