ASSE 1017|ASSE 1069/1070|CSA B 125.3|NSF 61/372|IAPMO Listed

• Certified for distribution and individual/multiple point-of-use applications for safer hot water from all outlets Allows the water heater to be set at 140 deg F or higher, yielding greater effective hot water volume and reducing the chance of growth of legionella bacteria Every valve is tested for performance on an automated testing station during the assembly process Robust, low complexity construction for superior reliability Mixed outlet flow of water reduces to a trickle in case of cold water supply failure, providing greater end user safety Adjustable and lockable mechanism minimizes unauthorized tampering with valve setting Factory set, locked to maximum 120 deg F Stainless steel spring, EPDM seals, engineered polymer piston, Noryl® GFN2 guide tube and internal brass cap Valve with SharkBite® union connections and integral checks

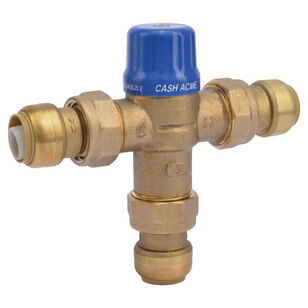

The HG110-D with SharkBite® connections is a triple-listed thermostatic mixing valve that delivers water at a safe 120 deg F or lower from all outlets, while allowing the water heater to be set at a germ-killing 140 deg F or higher which aids in preventing the growth of legionella bacteria in the water heater. The higher tank temperature means that hot water demands can be satisfied longer. The SharkBite® connections means that installing the valve each valve is factory set and locked to a maximum 120 deg F.
