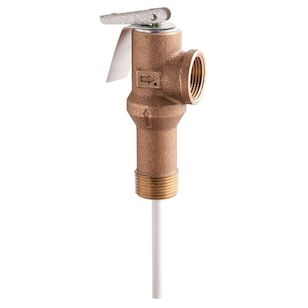

3/4 In Lead Free Self Closing Temp And Pressure Relief Valve, 150 psi, 210 degree F, Extended Shank Up To 1 3/4 In Insulation
3/4 In Lead Free Self Closing Temp And Pressure Relief Valve, 150 psi, 210 degree F, Extended Shank Up To 1 3/4 In Insulation
Temperature Pressure Relief Valve
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$134.00 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
IndustryPlumbing
Shipping Dimensions (L x W x H)2.45" x 1.4" x 7.75"
Features & Benefits
- Lead free copper alloy body construction
- Extended shank for thick tank insulation up to 1 3/4 inches
- 3/4 IN male NPT inlet with pre-applied thread sealant
- ASME rated and CSA listed
- Pressure relief range is 75 to 150 psi
- ASME rated, CSA Listed
- Extension thermostat with thermo-bonded coating
- Used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr
- ANSI Z21.22 certified
Documents
Marketing Information
This 3/4 inch lead free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. This two-in-one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a lead free copper alloy body with extended shank to accommodated up to 1 3/4 IN of insulation, NPT male inlet and NPT female outlet connections, a unique thermostat with special thermo-bonded coating, and test lever. The temperature relief is 210 degrees F (99 degrees C) and the pressure relief is set at 150 psi (10.3 bar).
3/4 In Lead Free Self Closing Temp And Pressure Relief Valve, 150 psi, 210 degree F, Extended Shank Up To 1 3/4 In Insulation
BrandWATTS®
MFG #0068720
Keller #731600
My Part ##
Last Ordered#
$134.00 / ea
