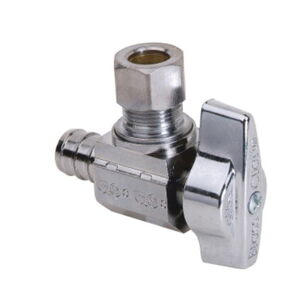

BrassCraft® KTBRPX19X C Stop Valve, 1/2 x 3/8 in Nominal, Barbed x Compression, Quarter-Turn Handle Actuator, 125 psi
BrassCraft® KTBRPX19X C Stop Valve, 1/2 x 3/8 in Nominal, Barbed x Compression, Quarter-Turn Handle Actuator, 125 psi
BrassCraft® Stop Valve, 1/2 x 3/8 in Nominal, Barbed x Compression Connection, 125 psi, Material Standard: ASTM F1807, ASTM F876, ASTM F877, Brass/PTFE Trim, PTFE/Rubber Softgoods, Brass Body, Zinc Handle, Quarter-Turn Handle Actuator, Finish: Chrome-Plated, 40 to 180 deg F, 2.22 in L, Domestic/Import: Domestic, Additional Information: 1.2 in Top to inlet Center, Angled Configuration, Brass Stem, Lead-Free, PTFE Seat, Water Media, Water Service
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$51.36 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandBrassCraft®
Actuator TypeQuarter-Turn Handle
Additional Information1.2 " Top to inlet Center, Angled Configuration, Brass Stem, Lead-Free, PTFE Seat, Water Media, Water Service
ApplicationFor use in potable water distribution systems and recirculating water systems that produce continuous use temperatures above 115 deg F
Body MaterialBrass
Connection TypeBarbed x Compression
Dimensions2.22 " L
Domestic/ImportDomestic
FinishChrome-Plated
Handle MaterialZinc
IndustryPlumbing
Material StandardASTM F1807, ASTM F876, ASTM F877
Nominal Size1/2 x 3/8
Pressure Rating125
Softgoods MaterialPTFE/Rubber
Temperature Rating40 to 180
Trim MaterialBrass/PTFE
Additional Information
ASME A112.18.1|CSA B125.1|cUPC Certified|NSF/ANSI 372, NSF/ANSI/CAN 61
Features & Benefits
- Machined one-piece brass body provides strength, durability and long-lasting performance Compatible with copper or PEX Precision machined brass ball to provides smoother operation without freeze-ups even after long periods of non-use Blowout-proof, plated stem is assembled from the inside with double O-ring to help ensure safe, reliable performance Easy-to-remove handle protects against accidental operation during rough-ins 100% leak tested to ensure reliable, leak-free performance Designed, machined and assembled in the USA
BrassCraft® KTBRPX19X C Stop Valve, 1/2 x 3/8 in Nominal, Barbed x Compression, Quarter-Turn Handle Actuator, 125 psi
BrandBrassCraft®
MFG #KTBRPX19X C
Keller #732014
