ASSE 1017|ASSE 1069|ASSE 1070|CSA B125.3|NSF 372

• Certified for distribution and point of use applications Safer hot water from all outlets Allows the water heater to be set at 140 deg F (60 deg C) or higher greater effective hot water volume yields less chance of legionella within the cylinder Every valve is tested for performance prior to shipping, specify and install with confidence robust, low complexity construction, superior reliability, improved user safety Adjustable and lockable mechanism minimizes unauthorized tampering with valve setting factory set, locked to maximum 120 deg F (49 deg C) listed by IAPMO, CSA and ASSE inspector friendly, peace of mind A temperature actuated mixing valve shall be installed at single or multiple point of use fixtures or at the water heater to distribute Tempered® water throughout the domestic hot water system at a maximum temperature of 120 deg F (49 deg C) The temperature actuated mixing valve shall control the delivered water temperature via a regulating piston made from engineered polymer The adjusting mechanism shall be protected by a lockable cover The valve shall be a CashAcme™ Heatguard® 110-D LF

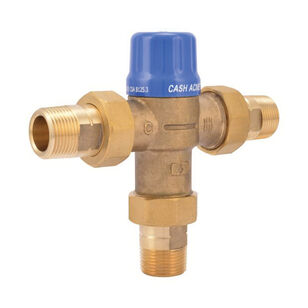

The Heatguard® 110-D is a temperature actuated mixing valve that mixes hot water with cold to deliver Tempered® water at a controlled temperature to 120 deg F (49 deg C) maximum. The Heatguard® 110-D is designed to assist in the prevention of scalding. The Heatguard® 110-D is intended for installation at the water heater to distribute controlled temperature water through the domestic hot water system or at point of use applications. The valve delivers water at a maximum of 120 deg F (49 deg C), allowing the heater to be set at 140 deg F (60 deg C) or higher, thus providing a greater effective volume of hot water and reducing the chances of legionella bacteria growth in the water. The Heatguard® 110-D is a high-quality mixing valve incorporating the latest in thermostatic technology. It features a robust design-based on the expertise gained from years of experience in the design and manufacture of safety valves. Every valve is tested for performance on an automated testing station during the assembly process. The valve is third-party listed for both distribution and point of use applications. The Heatguard® 110-D incorporates a fast acting, high-quality thermostatic element that senses the outlet water temperature and reacts to maintain a stable delivery temperature even under changing flows or variations in supply temperatures. The valve also greatly reduces the outlet flow in the event of a cold water supply failure. The Heatguard® 110-D features a locking mechanism to prevent unwanted adjustment above 120 deg F (49 deg C). The Heatguard® 110-D is shipped complete as a kit with your choice of end connections in 1/2 in, 3/4 in and 1 in sizes. Available end connections are sweat, CPVC, PEX, threaded and SharkBite®. All valves are supplied standard with check valves.
